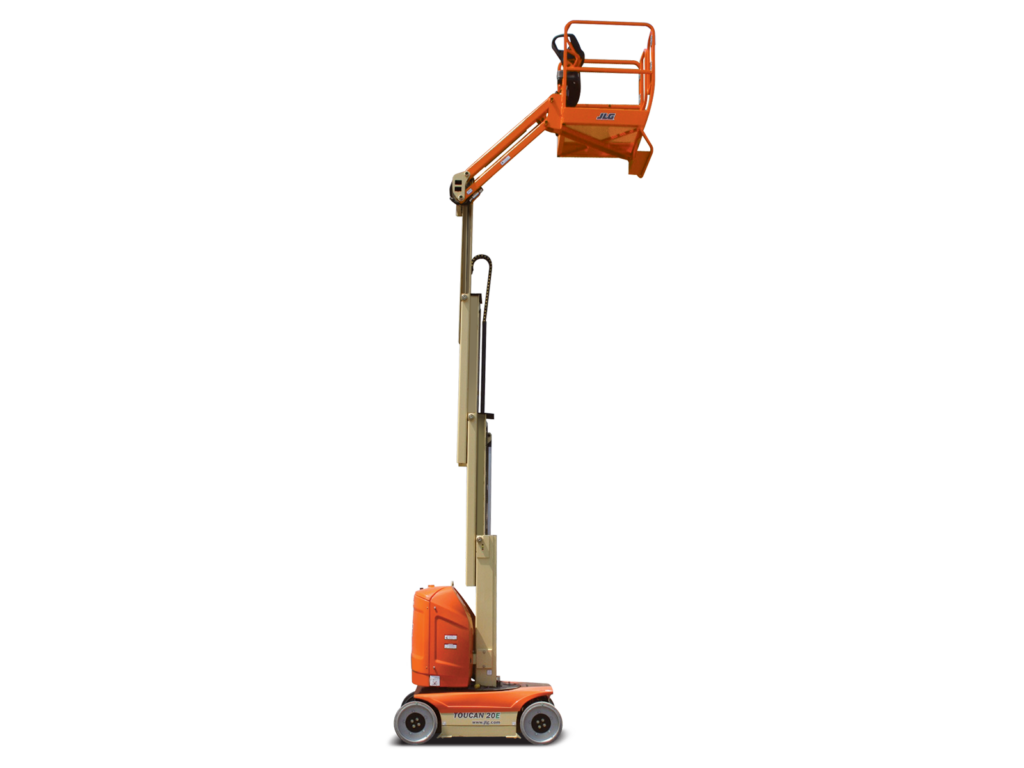

JLG T20E
Aerial
Key Specs
- Platform Height: 20 ft 2 in. / 6.15 m
- Platform Capacity: 500 lb / 226.80 kg
- Machine Width: 3 ft 3 in. / 0.99 m
Key Features
- Vertical telescopic mast with a jib lets you reach up and over obstacles in tighter spaces than an articulating boom
- Non-marking tires and efficient electric power for indoor jobs
- 25% gradeability for outside work
| Batteries | 225 amp-hr |
|---|---|
| Capacity - Hydraulic Reservoir | 5.3 gal. / 20.06 L |
| Drive Speed - Platform Lowered | 3.4 mph / 5.47 km/h |
| Electrical System | 24 Volts DC |
| Gradeability - 2WD | 25 % |
| Ground Clearance | 3 in. / 0.08 m |
| Horizontal Jib Rotation | 0 Degrees |
| Horizontal Outreach | 6 ft 7 in. / 2 m |
| Jib - Range of articulation | 125 Degrees |
| Machine Height | 6 ft 7 in. / 2.01 m |
| Machine Length | 6 ft 11 in. / 2.11 m |
| Machine Weight | 5360 lb / 2431.26 kg |
| Machine Width | 3 ft 3 in. / 0.99 m |
| Platform Capacity - Unrestricted | 500 lb / 226.80 kg |
| Platform Dimension A | 2 ft 9 in. / 0.84 m |
| Platform Dimension B | 2 ft 11 in. / 0.88 m |
| Platform Height | 20 ft 2 in. / 6.15 m |
| Swing Type | Non-Continuous |
| Swing | 360 Degrees |
| Tailswing | 7 in. / 0.18 m |
| Tire Size | 16 x 5 x 10.5 noon-marking |
| Turning Radius - Outside | 5 ft 9 in. / 1.75 m |
| Up and Over Height | 16 ft 9 in. / 5.1 m |
| Wheelbase | 3 ft 11 in. / 1.19 m |
- 25% gradeability for outside work
- Non-marking tires and efficient electric power for indoor jobs
- Vertical telescopic mast with a jib lets you reach up and over obstacles in tighter spaces than an articulating boom
