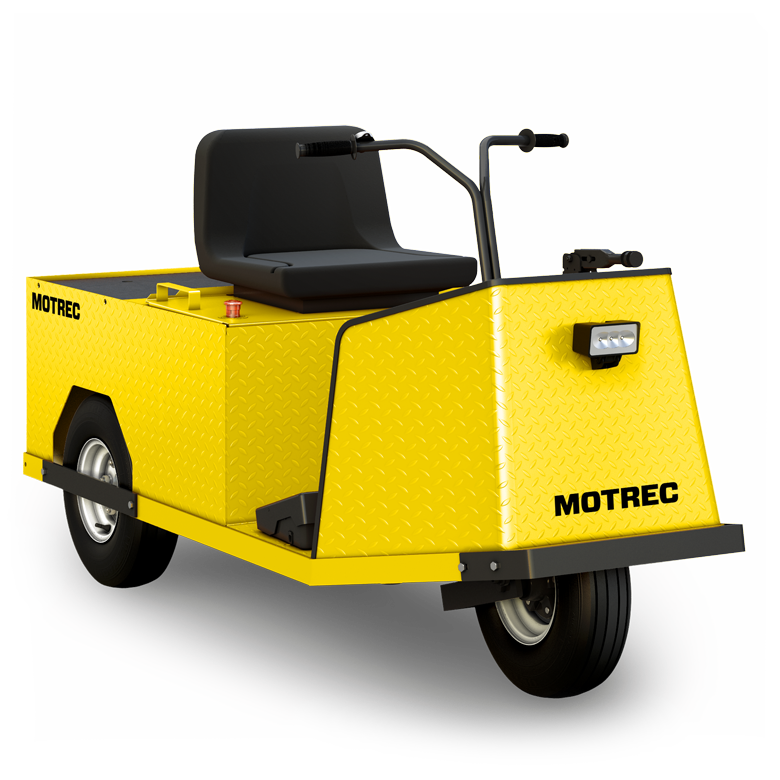

Motrec MP-240
  • + Expand All
  • - Close All
  • SpecificationsTable
    24V 36V
    Powertrain
    Motor 6 hp shunt motor 10 hp shunt motor
    Transmission Direct drive Direct Drive
    Energy
    Voltage 24V 36V
    Battery Four 6V-232AH batteries Six 6V-232AH batteries
    Chassis
    Equipment
  • BrakesDual self-adjusting mechanical drum brakes on rear, hand lever parking brake, regenerative braking
  • Drive AxleHelical gear differential
  • Wheels4.8x8 LRC pneumatic tires
  • SafetyReverse alarm, Deadman foot switch, Horn
  • ControllerSEPEX Electronic speed controller
  • SteeringHandlebar
  • AccessoriesBolt-on bumpers and rear wheel guards, 24V accessories to equalize cells and extend battery life.
  • IndicatorsBattery status indicator
  • SeatsBucket seat on slide adjusters
  • ChargerHigh-frequency (85-265VAC / 45-65Hz, 1kw), built-in and automatic.
  • Body14-G diamond-plate steel body, tubular frame, powder coating.
  • SuspensionDual coil springs & shock absorbers on front, dual coil springs and shock absorber on rear
  • LightsLED headlight & tail/brake light
