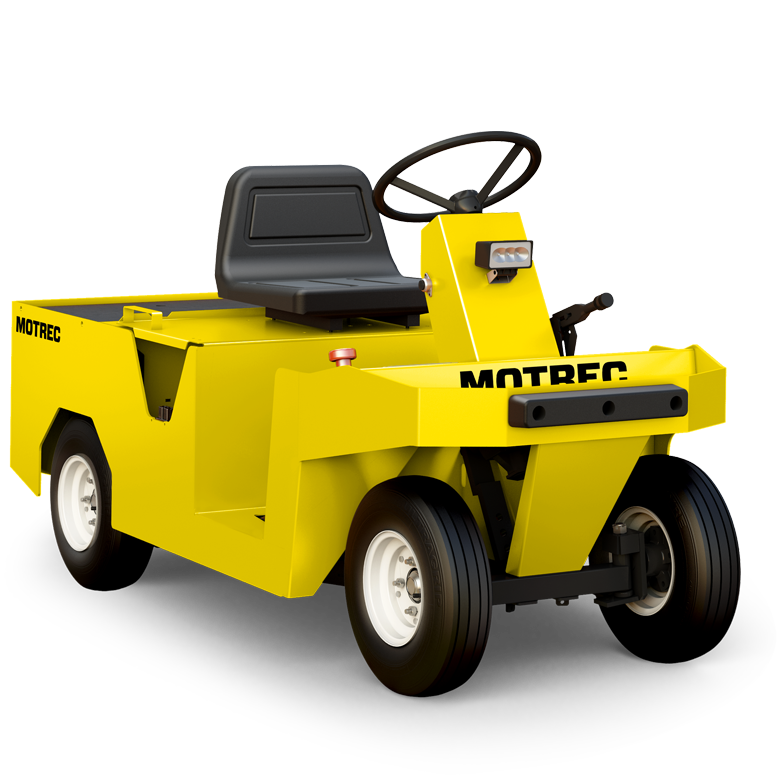

Motrec MT-290
Electric Industrial Vehicles
Built on our popular MP-250 base, the more powerful MT-290 is equal parts modern workhorse and mobile workshop. Its efficient AC motor offers impressive acceleration, even when towing loads of 16,000 lbs.* Its all-steel construction and four-wheel vibration dampening design ensure a smooth and stable ride even on bumpy surfaces. This agile, round-the-clock tow tractor effortlessly maneuvers through challenging areas, including doorways. A multi-purpose tugger boasting a long-lasting industrial battery with easy under-the-seat access.
| Lights | LED headlight & tail/brake light |
|---|---|
| Safety | Reverse alarm, deadman seat switch, horn |
| Seats | Bucket seat on slide adjusters |
| Suspension | Dual leaf springs on rear |
| Wheels | 4.8x8 LRC pneumatic tires |
| 24V Narrow | 36V HD | 48V | |
|---|---|---|---|
| Powertrain | |||
| Motor | 6 hp shunt motor | Brushless AC motor, 7.5 HP Intermittent, 10 HP Max | Brushless AC motor, 9 HP Intermittent, 15 HP Max |
| Drive Axle | Differential with automotive ring gear | Helical gear differential | Helical gear differential |
| Transmission | Dual V-belt drive | Direct drive | Direct drive |
| Controller | SEPEX Electronic speed controller | AC Electronic speed controller | AC Electronic speed controller |
| Energy | |||
| Voltage | 24V | 36V | 48V |
| Battery | Four 6V-232AH batteries | No battery included | No battery included |
| Charger | High-Frequency Charger, improves battery performance, prevents current surge, 50/60HZ, 110/220VAC | No charger included | No charger included |
| Chassis | |||
| Body | 14-G diamond-plate steel body, tubular frame | All-steel unibody construction | All-steel unibody construction |
| Brakes | Dual self-adjusting mechanical drum brakes on rear, hand lever parking brake, regenerative braking | Rear hydraulic drum brakes, regenerative braking | Rear hydraulic drum brakes, regenerative braking |
| Steering | Automotive Steering Wheel | Automotive steering wheel | Automotive steering wheel |
| Equipment | |||
| Indicators | Battery status indicator | Multifunction display including speedometer, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability. | Multifunction display including speedometer, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability. |
| Accessories | Bolt-on bumpers and rear wheel guards, 24V accessories to equalize cells and extend battery life | 36V/12V converter for 12-volt accessories, bolt-on front bumper | 48V/12V converter for 12-volt accessories, bolt-on bumpers and rear wheel guards |
