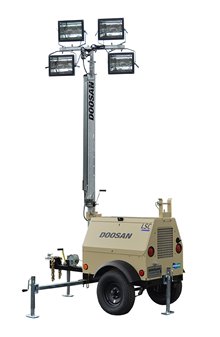

Doosan LSCWKUB-50HZ-T4F Light Tower
  • Width with Fenders - in (mm)49 (1245)
  • Shipping Weight - lb (kg)1423 (645.5)
  • Number of Cylinders/Displacement - cu In (L)3/61.1 (1.001)
  • Height in Travel Position - in (mm)69.4 (1763)
  • Cooling SystemWater
  • MakeKubota D1005BG
  • Length with Drawbar - in (mm)167.5 (4255)
  • Available voltages - Single-Phase230
  • Power @ Rated Speed - bhp (kW) @ 1800 rpm13.6 (10.1)
  • 230 V IEC 309(1) 16 amp
  • Emissions Tier LevelTier 4 Final (T4F)
  • DC System Voltage/Battery Capacity12 V/520 CCA
  • Operating Weight - lb (kg)1577 (716.2)
  • Max Tower Height - ft (m)30 (9)
  • 230 V IEC 123-14(1) 10 amp
  • Prime Power Rating, 60 Hz, 1.0 PF6 kW
  • Fuel Type/Usuable Fuel Capacity - gal (L)Diesel/28 (105)
  • Track Width - in (mm)42 (1067)
  • Runtime with 4 lights - hrs64
