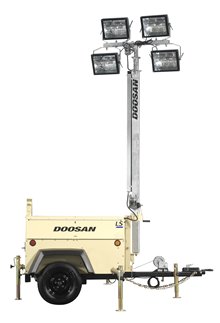

Doosan LSWKUB-60HZ-T4F Light Tower
  • Width with Fenders - in (mm)58 (1473)
  • Shipping Weight - lb (kg)1735 (786)
  • Cooling SystemWater
  • DC System Voltage/Battery Capacity12 V/600 CCA
  • Available voltages - Single-Phase120 / 240
  • 240 V Twistlock (NEMA L6-30R)(1) 25 amp
  • Power @ Rated Speed - bhp (kW) @ 1800 rpm13.6 (10.1)
  • Number of Cylinders/Displacement - cu In (L)3/69 (1.1)
  • 120 V GFCI Duplex (NEMA 5-20R)(1) 20 amp
  • Emissions Tier LevelTier 4 Final (T4F)
  • Length with Drawbar - in (mm)175 (4445)
  • Runtime with 4 lights - hr52
  • Max Tower Height - ft (m)30 (9)
  • Operating Weight - lb (kg)1938 (879)
  • Prime Power Rating, 60 Hz, 1.0 PF6 kW
  • Height in Travel Position - in (mm)70.5 (1791)
  • MakeKubota D1105
  • Fuel Type/Usuable Fuel Capacity - gal (L)Diesel/27 (102)
  • Track Width - in (mm)49 (1245)
