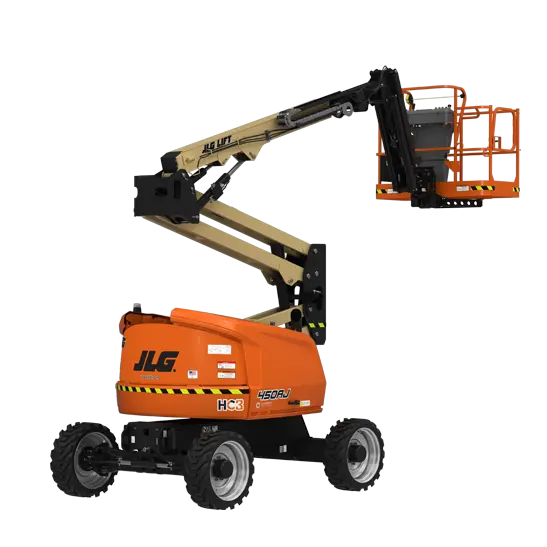

JLG 450AJ HC3
Aerial
Equipment Features
- 4-ft 1-in (1.24-m) Articulating Jib
- 110V-AC Receptacle in the Platform
- SkyGuard SkyLine™
| Auxiliary Power | 12V DC |
|---|---|
| Axle Oscillation | 4 in. |
| Capacity - Fuel Tank | 16 gal |
| Drive Speed - 4WD | 4.25 mph |
| Engine Type - Diesel | Deutz D2.9L4 Tier 4 Final |
| Engine Type - Dual Fuel | Kubota WG2503 |
| Gradeability - 4WD | 45% |
| Horizontal Outreach | 25 ft |
| Range of articulation | 145 Degrees |
| Machine Weight | 16,550 lbs |
| Maximum Ground Bearing Pressure | 76 psi |
| Platform Capacity - Unrestricted | 660 lbs |
| Platform Height | 45 ft |
| Swing | 355 Degrees Non-Continuous |
| Up and Over Height | 24 ft |
- USB-A and USB-C Charger
| Equipment Document | View Link |
|---|
Key Specs
- Platform Height: 45 ft
- Platform Capacity – Unrestricted: 660 lb
- Horizontal Outreach: 25 ft
- Up and Over Height: 24ft
Key Features
- Features three working zones for enhanced capacity; up to three workers and tools can fit onto the platform.
- Utilizes an upgraded light panel that is more visible in the sun and a chassis tilt alarm that alerts the operator when the machine is on a slope that exceeds 5 Degrees.
- Delivers a zero calibration automatic load sensing system that eliminates the need to use external weights to calibrate the machine.
- Available accessories and options provide the flexibility to upfit the machine to meet unique job requirements.
