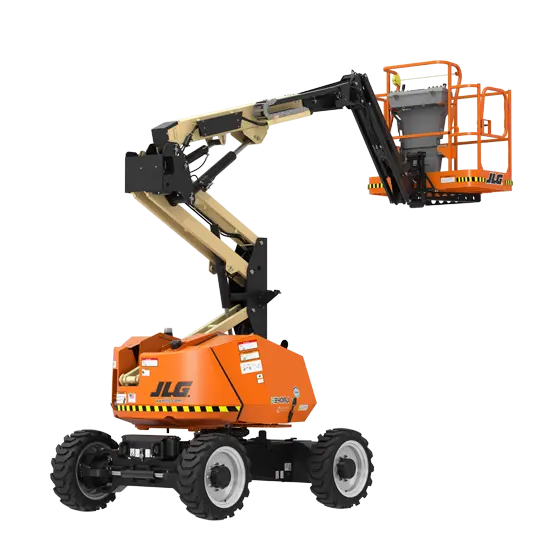

H340AJ Hybrid

  • JLG
  • Articulated Boom Lift

Find a location to get your local store information and inventory.

Find Location
Your Preferred Store
Change location Change location
Request Quote
Key Features & Specs

Key Specs

  • Platform Height: 33 ft 9 in. / 10.29 m
  • Machine Width: 6 ft 4 in. / 1.93 m

Key Features

  • Diesel-like performance – Four independent electric-drive motors and a Tier 4 Final diesel-powered generator provide exceptional terrainability on par with its diesel counterpart
  • Hybrid technology – Runs completely on 8 x 12v 100 amp-hour AGM batteries, which are charged by the diesel generator
  • Versatility – The power of a diesel machine combined with hybrid efficiency allows you to work both inside and outside
  • Low emissions – Experience reduced fuel use*, emissions, noise and maintenance
  • Low emissions – Experience reduced fuel use*, emissions, noise and maintenance
  • Diesel-like performance – Four independent electric-drive motors and a Tier 4 Final diesel-powered generator provide exceptional terrainability on par with its diesel counterpart
  • Hybrid technology – Runs completely on 8 x 12v 100 amp-hour AGM batteries, which are charged by the diesel generator
  • Versatility – The power of a diesel machine combined with hybrid efficiency allows you to work both inside and outside
  • Platform Dimension A: 2 ft 6 in. / 0.76 m
  • Platform Dimension B: 5 ft / 1.52 m
  • Batteries: 8 x 12V, 100 Amp-Hour
  • Machine Height: 6 ft 7 in. / 2.01 m
  • Generator / Engine - Brand: Kubota
  • Swing: 355 Degrees
  • Platform Height: 33 ft 9 in. / 10.29 m
  • Machine Weight: 9860 lb / 4472.42 kg
  • Generator / Engine - Horsepower / Kilowatts: 11.1 hp / 8.28 kW
  • Up and Over Height: 17 ft / 5.18 m
  • Electrical System: 48 Volts DC
  • Horizontal Jib Rotation: 0 Degrees
  • Tailswing: 2 in. / 0.05 m
  • Ground Clearance: 10 in. / 0.26 m
  • Horizontal Outreach: 19 ft 11 in. / 6.07 m
  • Gradeability - 4WD: 45 %
  • Capacity - Hydraulic Reservoir: 20.6 gal. / 77.98 L
  • Generator / Engine - Fuel Type: Diesel
  • Machine Width: 6 ft 4 in. / 1.93 m
  • Machine Length: 18 ft 2 in. / 5.54 m
  • Tire Size: 265/50 D20
  • Jib - Range of articulation: 139 Degrees
  • Drive Speed - Platform Lowered: 3.7 mph / 5.95 km/h
  • Swing Type: Non-Continuous
  • Platform Capacity: 500 lb / 226.80 kg
  • Turning Radius - Outside: 13 ft / 3.96 m
  • Wheelbase: 6 ft 2 in. / 1.88 m
  • Generator / Engine - Fuel Tank Capacity: 13 gal. / 49.21 L
