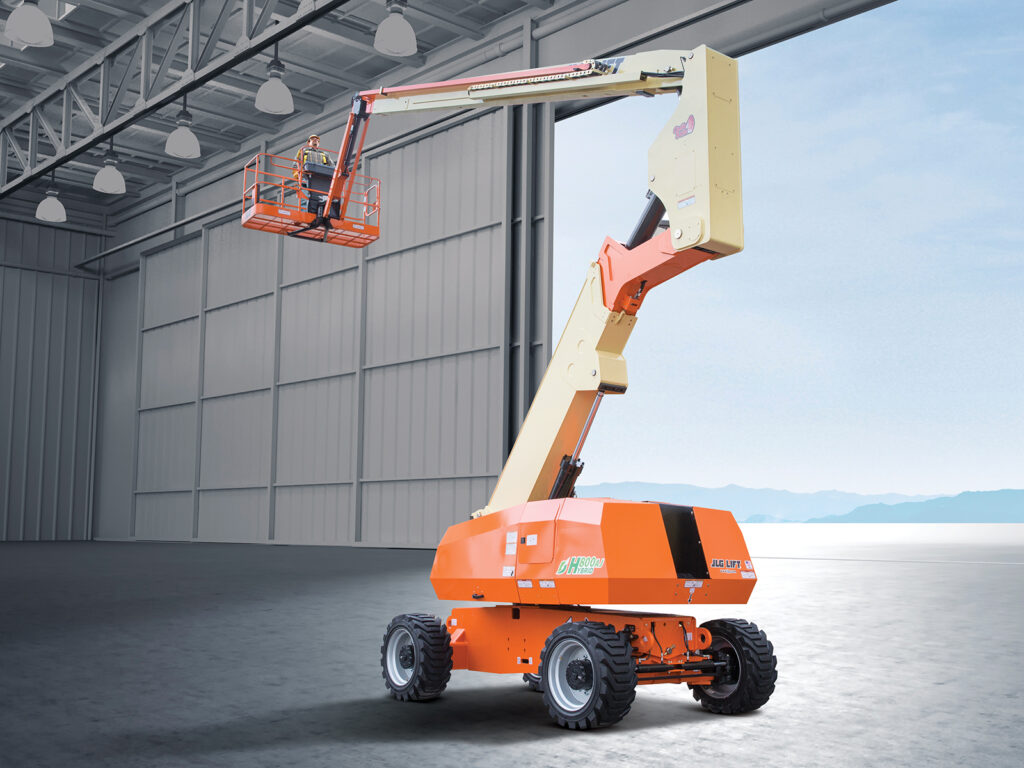

JLG H800AJ
Aerial
Equipment Features
- Built on 20 Years of Experience - JLG is expanding the hybrid family as we celebrate two decades of experience in this product category
- Economical Performance - Provides diesel performance with better fuel economy
- Same 800AJ with Efficient Hybrid Power - Core components like the drivetrain, weldments and hydraulics are the same, helping to improve total cost of ownership with common parts, service and reduced training needs
| Axle Oscillation | 8 in. / 0.2 m |
|---|---|
| Batteries | 12V 235Ah 4D Maintinance free AGM |
| Capacity - Fuel Tank | 25 gal. / 94.64 L |
| Capacity - Hydraulic Reservoir | 21 gal. / 79.49 L |
| Drive Speed - Platform Elevated | 0.3 mph / 0.43 km/h |
| Drive Speed - Platform Lowered | 3.5 mph / 5.55 km/h |
| Electrical System | 84 Volts DC |
| Engine Type - Diesel | Kubota Tier 4 Final |
| Gradeability - 4WD | 45 % |
| Ground Clearance | 11 in. / 0.28 m |
| Horizontal Outreach | 51 ft 10 in. / 15.8 m |
| Jib - Range of articulation | 130 Degrees |
| Machine Height | 9 ft 10 in. / 3 m |
| Machine Length | 36 ft 6 in. / 11.13 m |
| Machine Weight | 35520 lb / 16111.60 kg |
| Machine Width | 8 ft 2 in. / 2.49 m |
| Maximum Ground Bearing Pressure | 76 psi / 5.32 Kg/cm2 |
| Platform Capacity | 500 lb / 226.80 kg |
| Platform Height | 80 ft / 24.38 m |
| Swing | 360 Degrees |
| Tailswing | 3 ft 6 in. / 1.07 m |
| Tire Size | 15-625 Wide Lug Tread |
| Turning Radius - Inside | 12 ft 6 in. / 3.81 m |
| Turning Radius - Outside | 19 ft 8 in. / 5.99 m |
| Up and Over Height | 32 ft 1 in. / 9.78 m |
| Wheelbase | 10 ft / 3.05 m |
| Equipment Document | View Link |
|---|
Key Specs
- Platform Height: 80 ft / 24.38 m
- Machine Width: 8 ft 2 in. / 2.49 m
Key Features
- Same 800AJ with Efficient Hybrid Power – Core components like the drivetrain, weldments and hydraulics are the same, helping to improve total cost of ownership with common parts, service and reduced training needs
- Built on 20 Years of Experience – JLG is expanding the hybrid family as we celebrate two decades of experience in this product category
- Economical Performance – Provides diesel performance with better fuel economy
