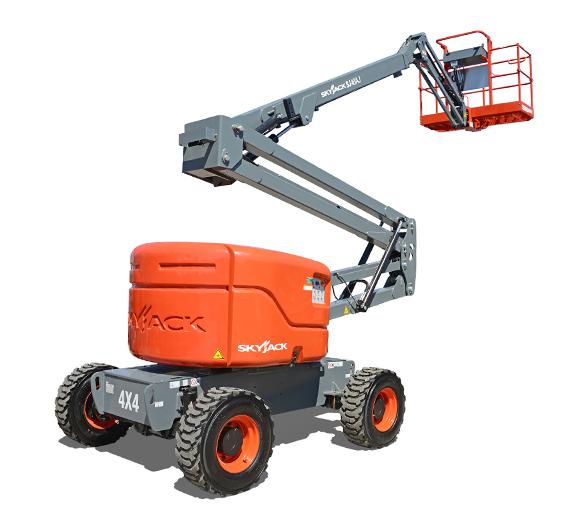

Skyjack SJ46 AJ
Aerial
Equipment Features
- 110V AC outlet on platform with GFI
- 12 x 16.5 grip lug air-filled tires
- 355° Non-continuous turret rotation
- 45% Gradeability
- All motion alarm
- Axle based 4WD system
- Color coded and numbered wiring
- Diesel or dual fuel engine
- Direction sensing drive and steer controls
- Drivable at full height
- Dual-entry sliding mid rails
- Hourmeter
- Modular platform railing system
- Operator controlled locking rear differential and limited slip front differential
- Operator horn
- Oscillating axle
- Proportional controls
- Relay based control system
- Swing out engine tray
- Swing up cowlings
- Telematics ready
- Tie down/lifting lugs
- Wet disc SAHR brakes (rear axle)
Work Height
52’3” (15.93 m)
Platform Height
46’3” (14.10 m)
Horizontal Reach
24’9” (7.54 m)
Up and Over Height
24’5” (7.45 m)
Platform Size
30” x 72” (0.76 x 1.83 m)
Stowed Width
90” (2.29 m)
Tailswing
Zero
Stowed Height
82” (2.06 m)
Stowed Length
21’5” (6.35 m)
Ground Clearance
16” (0.39 m)
Wheelbase
80” (2.03 m)
Rotation
355° NC
Platform Rotation
170°
Jib Length
5’ (1.52 m)
Jib Range +/-
+70° / -75°
Weight
13,300 lbs (6,033 kg)
Gradeability
45%
Turning Radius (Inside)
98” (2.49 m)
Turning Radius (Outside)
178” (4.52 m)
Axle Oscillation
5” (12.70 cm)
Drive Speed (High speed)
4.8 mph (7.7 km/h)
Capacity
500 lbs (227 kg)
Local Floor Load (With Rated Load)
115 psi (793 kPa)
Overall Floor Load (With Rated Load)
200 psf (9.58 kPa)
Maximum # of Persons
2
Tire Type
Air Filled
Tire Size
12 x 16.5
Diesel Engine
48 HP
Dual Fuel Engine
82 HP
Fuel Tank
17 gallon (64 L)
Hydraulic Reservoir
24 gallon (91 L)
