Genie Z-30/20 N RJ
Aerial
Equipment Specifications
| Max Horizontal Reach | 20 ft 6 in | 6.25 m |
|---|---|
| Max Up and Over Clearance (riser extended) | 12 ft 8 in | 3.86 m |
| Max Working Height | 35 ft 2 in | 10.89 m |
| Platform Capacity | 500 lb | 227 kg |
| Max Horizontal Reach | 20 ft 6 in | 6.25 m |
|---|---|
| Max Up and Over Clearance (riser extended) | 12 ft 8 in | 3.86 m |
| Max Working Height | 35 ft 2 in | 10.89 m |
| Platform Capacity | 500 lb | 227 kg |

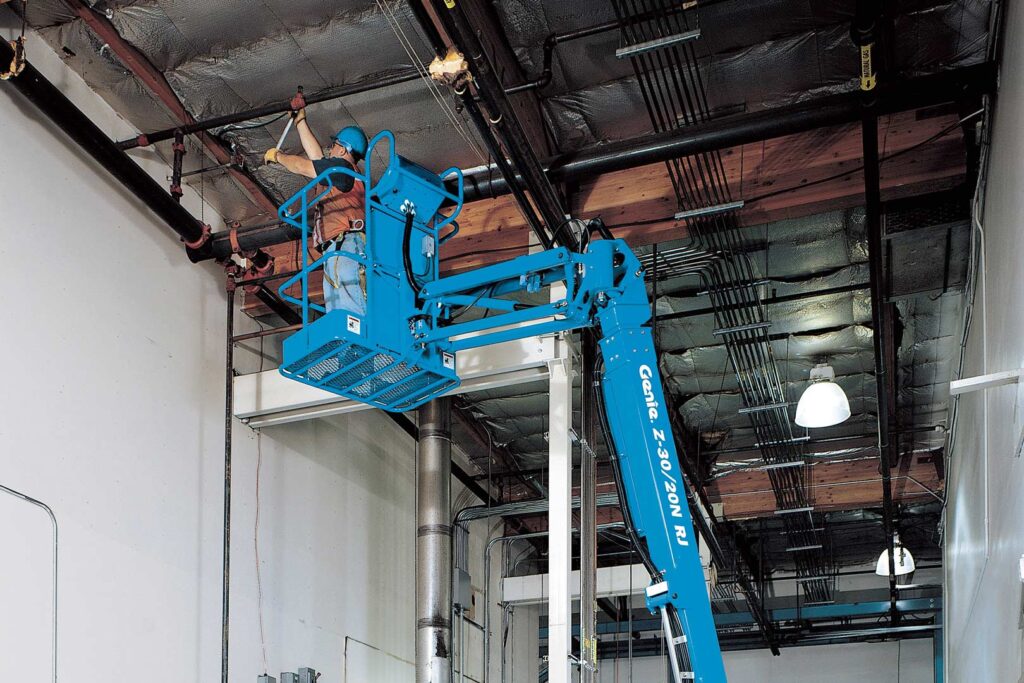

The Genie® Z®-30/20 N RJ articulating boom lift offers quiet, emission-free operation in the most sensitive work environments, and includes a rotating jib for 180°of horizontal rotation. Similar to the Z®-30/20 N, when the machine must be driven significant distances, the Genie bi-energy system combines the benefits of a 48V DC machine with the versatility of a diesel-powered generator.
Overview
- Works in tight spaces with zero tailswing and front arm swing in stowed and raised positions
- Compact chassis for narrow aisle access
- The RJ model features a rotating jib that adds an industry-leading 180° (2 x 90°) of horizontal rotation.
- 35% gradeability drive performance and 3.3 mph travel speed
Certification Options
- EE rating
Lift/Turntable Options
- AGM maintenance-free batteries
- Battery charge indicator (BCI)
- Specialty hydraulic oil (6 gal – cold weather, fire resistant, or biodegradable)
- Low voltage interrupt with battery charge indicator (BCI)
- Power inverter, 800W, 120V AC, 60 Hz
- Hostile environment kit: cylinder bellows, boom wiper seals and platform control box cover
Platform Options
- Air line to platform: ? in. inner diameter
- Aircraft protection kit: platform foam padding and padded disable system
- Light package: 2 chassis mounted drive lights, 2 platform mounted work lights
- Lockable platform control box cover
- Platform ½ height mesh inserts with swing gate
- Platform auxiliary top rail
- Platform swing gate
