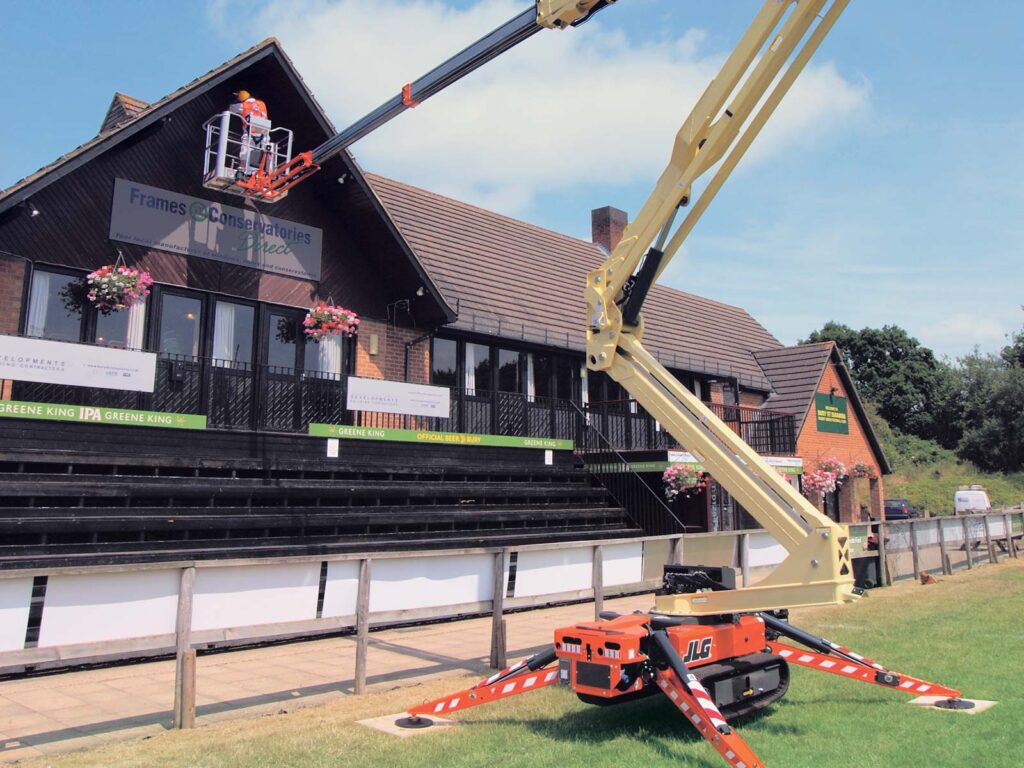

JLG X600AJ
Aerial
Key Specs
- Machine Width: 2 ft 7 in. / 0.79 m
- Platform Capacity: 500 lb / 226.80 kg
Key Features
- Drive speed control for smooth operation on a variety of terrains
- 500 lb unrestricted platform capacity
- Regenerative valve on telescopic cylinder resulting 50% increase in speed
- Auto levels on uneven surfaces
- Travels through a single doorway
| Engine Type - Electric | 100Ah 72V Lithium-Ion |
|---|---|
| Engine Type - Gasoline | Honda GX440 15 hp |
| Fuel Tank Capacity - Gasoline | 1.5 gal. / 5.68 L |
| Gradeability | 28 % |
| Ground Bearing Pressure - Outriggers | 44.1 psi / 3.09 Kg/cm2 |
| Horizontal Outreach | 30 ft / 9.14 m |
| Jib - Range of articulation | 89 Degrees |
| Machine Height | 6 ft 7 in. / 1.99 m |
| Machine Length | 16 ft 5 in. / 5 m |
| Machine Weight | 6571 lb / 2980.56 kg |
| Machine Width | 2 ft 7 in. / 0.79 m |
| Maximum Ground Bearing Pressure | 9.3 psi / 0.65 Kg/cm2 |
| Outrigger Footprint Length | 10 ft 7 in. / 3.23 m |
| Outriggers or Stabilizers | Yes |
| Platform Capacity | 500 lb / 226.80 kg |
| Platform Dimension A | 4 ft 10 in. / 1.47 m |
| Platform Dimension B | 2 ft 6 in. / 0.76 m |
| Platform Height | 59 ft 3 in. / 18.06 m |
| Slope Tolerance | 15 ° |
| Swing Type | Non-Continuous |
| Swing | 360 Degrees |
- 500 lb unrestricted platform capacity
- Auto levels on uneven surfaces
- Drive speed control for smooth operation on a variety of terrains
- Regenerative valve on telescopic cylinder resulting 50% increase in speed
- Travels through a single doorway
