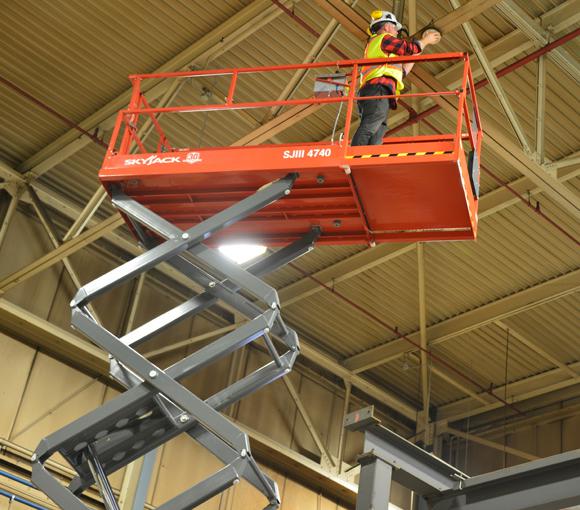

Skyjack SJIII 4740
Aerial
Equipment Features
- 110V AC outlet on platform with GFI
- 24V DC power source
- 25% Gradeability
- 28 mph wind rating (12.5m/sec)
- 3’ (0.9 m) Roll out extension deck
- All motion audible alarm
- Color coded and numbered wiring system
- DC Motor controller
- Drivable at full height
- Dual holding brakes
- Forklift pockets and tie down/lift lugs
- Half height hinged gate
- Hinged railing system
- Lanyard attachment points
- Low voltage battery protection
- Operator horn
- Pothole protection system
- Proportional controls for drive & lift functions
- Relay based control system
- Solid rubber, non-marking tires
- Telematics ready
- Tilt alarm with drive & lift cut-out
- Variable speed, front wheel hydraulic drive
Work Height
45.5? (13.8 m)
Raised Platform Height
39.5? (12.0 m)
Lowered Platform Height
54" (1.37 m)
Overall Width
47" (1.19 m)
Overall Length
94.5" (2.40 m)
Stowed Height (Rails Up)
97.9" (2.49 m)
Stowed Height (Rails Down)
78.2” (1.99 m)
Platform Width (Inside Dimension)
42" (1.06 m)
Platform Length (Inside Dimension)
86" (2.19 m)
Extension Deck (Roll Out)
3' (0.9 m)
Ground Clearance (raised)
3.19" (8.1 cm)
Wheelbase
73" (1.85 m)
Weight
7480 lbs (3393 kg)
Gradeability
25%
Turning Radius (Inside)
21" (0.54 m)
Turning Radius (Outside)
101" (2.58 m)
Lift Time (With Rated Load)
71 sec
Lower Time (With Rated Load)
41 sec
Drive Speed (Stowed)
2.0 mph (3.2 km/h)
Drive Speed (Raised)
0.62 mph (1.0 km/h)
Maximum Drive Height
Full Height
Capacity (Overall)
500 lbs (227 kg)
Maximum # of Persons
2
Wind Rating
28 mph (12.5 m/s)
Tire Type
Solid, N/M
Tire Size
16 x 5 x 12
