Genie AL-4
Aerial
Equipment Specifications
| Fuel Capacity | 30 gal | 114 L |
|---|---|
| Generator Size | Brushless 60 Hz, 6.0 kW |
| Lamps | Metal halide 4 x 1,000 W |
| Tower Height | 30 ft | 9.14 m |
| Fuel Capacity | 30 gal | 114 L |
|---|---|
| Generator Size | Brushless 60 Hz, 6.0 kW |
| Lamps | Metal halide 4 x 1,000 W |
| Tower Height | 30 ft | 9.14 m |

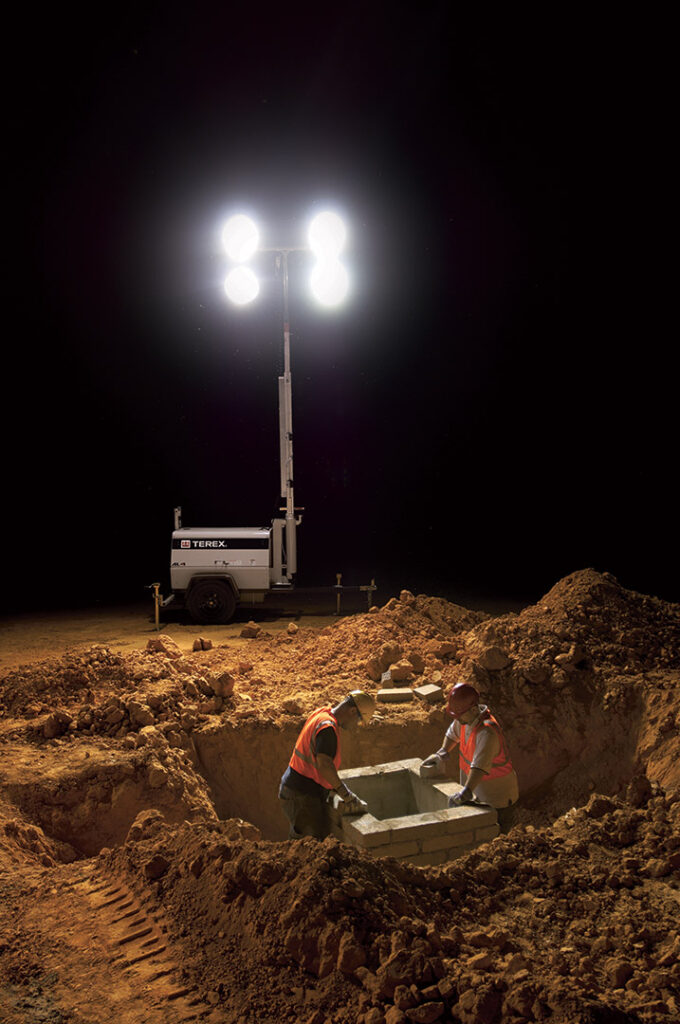

The 30-ft (9.14 m) extended-height, heavy-duty Terex® AL™4 floodlight tower provides 4,000 Watts of light and is designed to maximize uptime with quick disconnect lights and ballasts, 359º non-continuous tower rotation, heavy duty axles and chassis, and galvanized masts and outriggers.
Overview
- 4,000 Watts of light from 4 x 1,000 Watt metal halide lamps
- Reliable Kubota engine and 6 kW generator
- Quiet 71 dBA sound levels at 23 ft (7 m)
- Fuel-efficient operation for up to 60 hours of run time per tank
- Heavy-duty mast, chassis and 3,500-lb (1,587.6 kg) rated axle to handle towing on rough roads
Chassis Options
- 30 gal fuel tank with spill containment
- 50 gal fuel tank
- Dome light with switch, 12V
- Export racking and preparation
- Spare tire and wheel
- Tough coat paint surface: cabinet and trailer front
- Trailer brakes, electric
- Trailer brakes, hydraulic surge: ball hitch
- Trailer brakes, hydraulic surge: ring hitch
Hitch Options
- 2 5/16 inch ball coupler
- 2 1/2 inch I.D. pintle ring coupler
- Combination ring and ball hitch
- 2 1/2 inch ring hitch, adjustable, 6"
- 3 Inch ring hitch, adjustable, 6"
- 2 inch bulldog hitch, fixed
- 2 5/16 inch bulldog hitch, fixed
- 2 5/16 inch bulldog hitch, adjustable, 6"
Engine Options
- 7 kW, 50 Hz, generator with 13.6 hp Kubota diesel
- 8 kW, 60 Hz, generator with 13.6 hp Kubota diesel
- Automatic air shutdown
- Fuel/water separator filter
- Fuel/water separator with fuel line heater
Tower Options
- 4 horizontally mounted lights: cast aluminum square housing
- Electronic winch, 12 volt
Cold Weather Options
- Cold Weather Package (includes 800 CCA battery, heater blanket, coolant heater, and low temp coolant)
- 800 CCA battery
- Battery heater blanket
- Engine block heater
- Low temperature coolant mixture (-40° F)
