Genie GS-4069 DC
Aerial

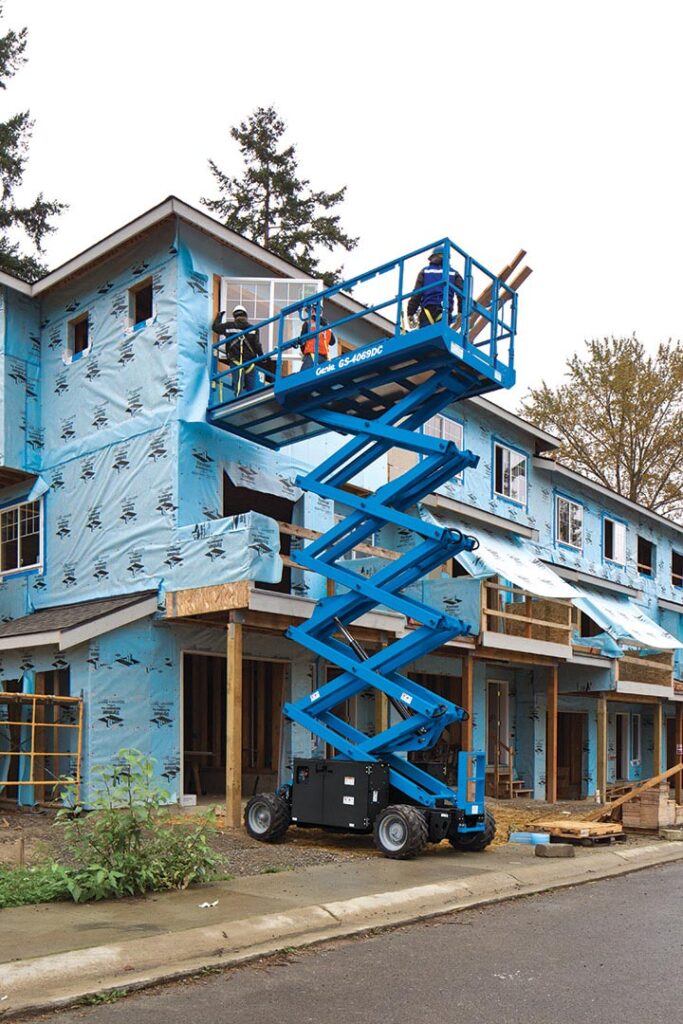

Equipped with a patented full-time oscillating axle automatically adjusts the axle position based on ground conditions, the Genie® GS™-4069 DC rough terrain slab scissor lift is excellent for indoor and outdoor construction, maintenance and installation applications with firm, level surfaces.
Overview
- Full-drive working height
- Can easily be driven through dirt, sand and mud between tasks.
- Quiet, electric-drive motor for emissions-free performance
- 800-lb (363 kg) lift capacity
| Capacity | 800 lb | 363 kg |
|---|---|
| Machine Length | 10 ft 3 in | 3.12 m |
| Machine Width | 5 ft 9 in | 1.75 m |
| Max Platform Height | 40 ft 3 in | 12.3 m |
| Weight | 10,856 lb | 4,924 kg |
Chassis Options
- High capacity batteries, 315 Ah (standard on GS-4069)
- Automatic leveling hydraulic outriggers
- Power inverter, 800W, 48V DC, 120V AC, 60 Hz
Chassis – Tire Options
- Rough terrain, non-marking foam-filled tires (petroleum based)
- High flotation foam-filled non-marking tires
Platform Options
- Air line to platform: ? in. inner diameter
