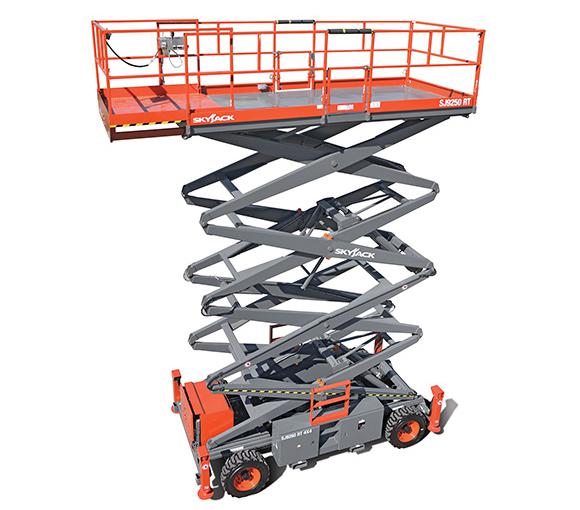

Skyjack SJ9250 RT
Aerial
Equipment Features
- “Detroit Locker” type rear differential and limited slip front differential
- 110V AC outlet on platform with GFI
- 30% Gradeability
- 5’ (1.52 m) Powered extension deck
- All motion audible alarm
- Axle based 4WD system
- Color coded and numbered wiring system
- Disc brake system on rear axle
- Dual fuel (gas/propane) or diesel engine
- Flashing light
- Fold down hinged railing system
- Grip Lug, air-filled tires
- Half height spring hinged gates on both sides
- Independent/Auto leveling outriggers
- Lanyard attachment points
- Operator horn
- Relay based control system
- Self-centering scissor design allows extension decks to be added to both ends
- Telematics ready
- Tie down/lift lugs
- Tilt alarm with drive & lift cut-out
Work Height
56’ (17.07 m)
Raised Platform Height
50’ (15.24 m)
Lowered Platform Height
79” (2.01 m)
Overall Width
92” (2.34 m)
Overall Length
176” (4.47 m)
Stowed Height (Rails Up)
124.5” (3.17 m)
Stowed Height (Rails Down)
90” (2.29 m)
Platform Width (Inside Dimension)
74” (1.88 m)
Platform Length (Inside Dimension)
168” (4.27 m)
Extension Deck
5’ (1.52 m)
Ground Clearance
8” (0.20 m)
Wheelbase
119” (3.02 m)
Weight
15,200 lbs (6,895 kg)
Gradeability
30%
Turning Radius (Inside)
210” (5.33 m)
Turning Radius (Outside)
301” (7.65 m)
Lift Time (With Rated Load)
67 sec
Lower Time (With Rated Load)
72 sec
Drive Speed (Stowed)
2 mph (3.2 km/h)
Drive Speed (Raised)
0.6 mph (1 km/h)
Maximum Drive Height
30’ (9.14 m)
Capacity (Overall)
1,500 lbs (680 kg)
Local Floor Load (With Rated Load)
146 psi (1006 kPa)
Overall Floor Load (With Rated Load)
204 psf (10 kPa)
Maximum # of Persons
5
Tire Type
Air Filled
Tire Size
10 x 16.5
