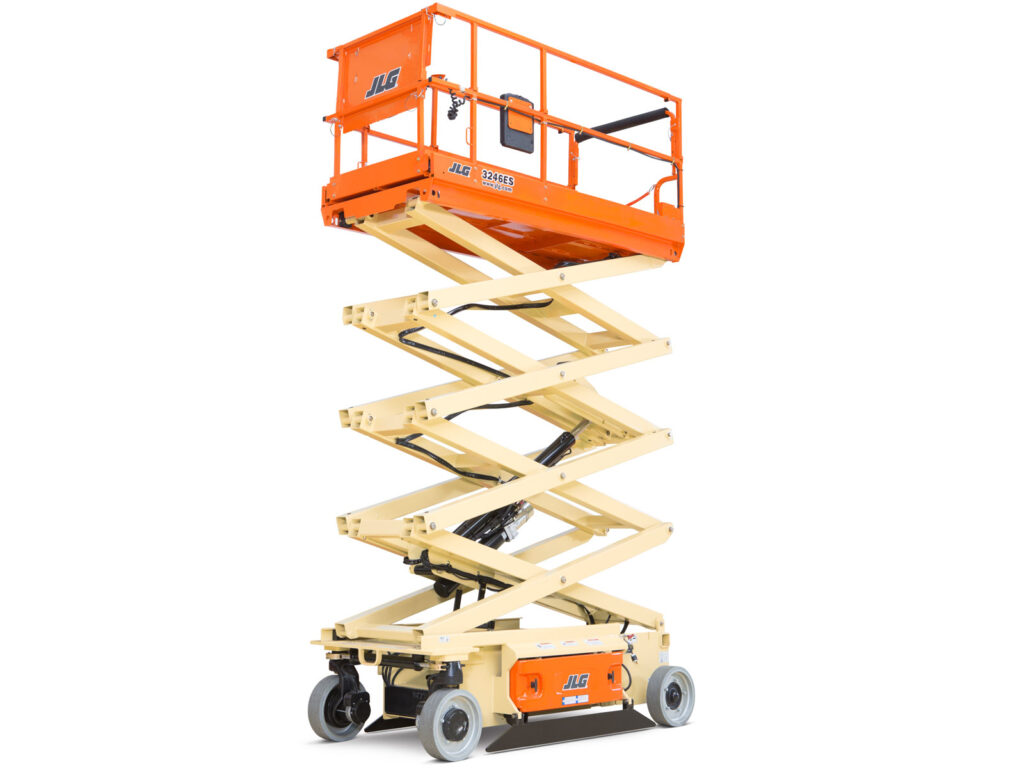

JLG 3246ES
Aerial
Equipment Features
- Delivers 200% more battery life* *Compared to a competitive model under similar test conditions. Actual results may vary.
- Electric drive and integrated components with only two hydraulic hoses and four hydraulic fittings on the entire machine will keep you on the job longer and reduce your operating costs by reducing chances for leaks and service calls
- Quieter, cleaner operation for a variety of environments
| Batteries | 4 x 6V, 220 amp-hr |
|---|---|
| Brakes | Electric, Friction |
| Capacity - Hydraulic Reservoir | 1.7 gal. / 6.44 L |
| Charger | 20 amp automatic |
| Drive Speed - Platform Elevated | 0.5 mph / 0.80 km/h |
| Drive Speed - Platform Lowered | 2.5 mph / 4.02 km/h |
| Gradeability | 25 % |
| Ground Clearance | 5 in. / 0.13 m |
| Hydraulic Pump | Fixed Displacement Gear |
| Lift Time | 55 sec. |
| Lower Time | 62 sec. |
| Machine Height - Rails Folded | 6 ft 6 in. / 1.97 m |
| Machine Height | 7 ft 9 in. / 2.36 m |
| Machine Length | 8 ft 3 in. / 2.5 m |
| Machine Weight | 4975 lb / 2256.62 kg |
| Machine Width | 3 ft 10 in. / 1.17 m |
| Maximum Drive Height | 31 ft 9 in. / 9.68 m |
| Maximum Ground Bearing Pressure | 87 psi / 6.09 Kg/cm2 |
| Maximum Lift Height | 31.8 ft / 9.68 m |
| Platform Capacity - Extension | 250 lb / 113.40 kg |
| Platform Capacity - Restricted | 1000 lb / 453.59 kg |
| Platform Capacity - Unrestricted | 700 lb / 317.51 kg |
| Platform Dimension B | 3 ft 8 in. / 1.12 m |
| Platform Extension Length | 4 ft 2 in. / 1.27 m |
| Platform Height - Lowered | 4 ft 2 in. / 1.26 m |
| Platform Railing Height | 3 ft 7 in. / 1.1 m |
| Tire Size | 16 x 5 in |
| Turning Radius - Inside | 0 in. / 0 m |
| Turning Radius - Outside | 7 ft 11 in. / 2.42 m |
| Wheelbase | 6 ft 10 in. / 2.08 m |
| Working Height | 37 ft 9 in. / 11.51 m |
- Tight turning radius for great maneuverability
| Equipment Document | View Link |
|---|
Key Specs
- Platform Height: 31 ft 9 in. / 9.68 m
- Machine Width: 3 ft 10 in. / 1.17 m
Key Features
- Quieter, cleaner operation for a variety of environments
- Electric drive and integrated components with only two hydraulic hoses and four hydraulic fittings on the entire machine will keep you on the job longer and reduce your operating costs by reducing chances for leaks and service calls
- Tight turning radius for great maneuverability
- Delivers 200% more battery life*
*Compared to a competitive model under similar test conditions. Actual results may vary.
