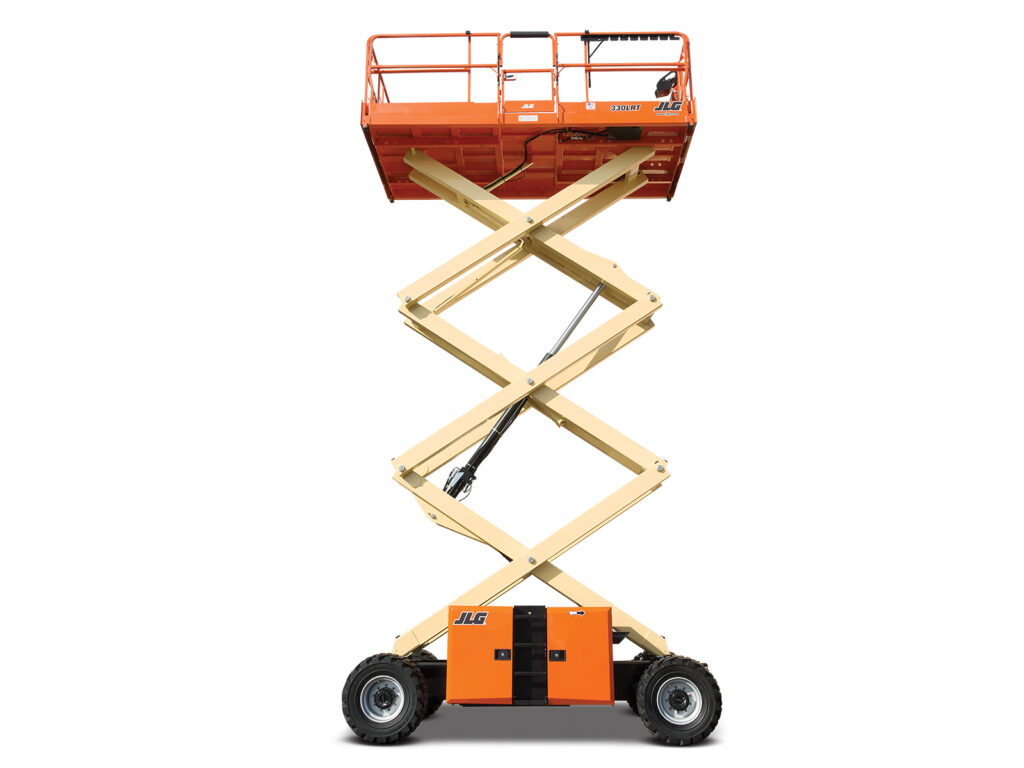

JLG 330LRT
Aerial
Key Specs
- Platform Height: 33 ft / 10.06 m
- Platform Capacity: 2250 lb / 1020.58 kg
- Machine Width: 7 ft 9 in. / 2.36 m
Key Features
- Enhanced Stability on Uneven Surfaces – Standard oscillating axle gives you better traction and grade climbing ability
- Smoother Extension Deployment – New platform is designed to shed debris and allows for smoother extension deployment
- Better Serviceability – Fully accessible hydraulic and engine compartments are easier to service
| Capacity - Fuel Tank | 30 gal. / 113.56 L |
|---|---|
| Capacity - Hydraulic Reservoir | 32 gal. / 121.13 L |
| Drive Speed - Platform Elevated | 0.5 mph / 0.80 km/h |
| Drive Speed - Platform Lowered | 3.5 mph / 5.63 km/h |
| Engine Type - Diesel | Kubota 1.26L, 24.8HP |
| Gradeability | 45 % |
| Ground Clearance | 1 ft 2 in. / 0.35 m |
| Lift Time | 35 sec. |
| Lower Time | 37 sec. |
| Machine Height - Rails Folded | 6 ft 1 in. / 1.85 m |
| Machine Height | 9 ft 1 in. / 2.77 m |
| Machine Length | 12 ft 10 in. / 3.91 m |
| Machine Weight | 11820 lb / 5361.46 kg |
| Machine Width | 7 ft 9 in. / 2.36 m |
| Platform Capacity - Extension | 500 lb / 226.80 kg |
| Platform Capacity | 2250 lb / 1020.58 kg |
| Platform Dimension A | 6 ft 7 in. / 2.01 m |
| Platform Dimension B | 12 ft 10 in. / 3.92 m |
| Platform Extension Length | 4 ft / 1.22 m |
| Platform Height - Lowered | 5 ft 4 in. / 1.62 m |
| Platform Height | 33 ft / 10.06 m |
| Platform Railing Height | 3 ft 8 in. / 1.1 m |
| Tire Size | 33 X 15.5 Superwide |
| Turning Radius - Inside | 8 ft 11 in. / 2.71 m |
| Turning Radius - Outside | 19 ft 6 in. / 5.93 m |
| Wheelbase | 9 ft 9 in. / 2.97 m |
| Working Height | 39 ft / 11.89 m |
- Better Serviceability - Fully accessible hydraulic and engine compartments are easier to service
- Enhanced Stability on Uneven Surfaces - Standard oscillating axle gives you better traction and grade climbing ability
- Smoother Extension Deployment - New platform is designed to shed debris and allows for smoother extension deployment
