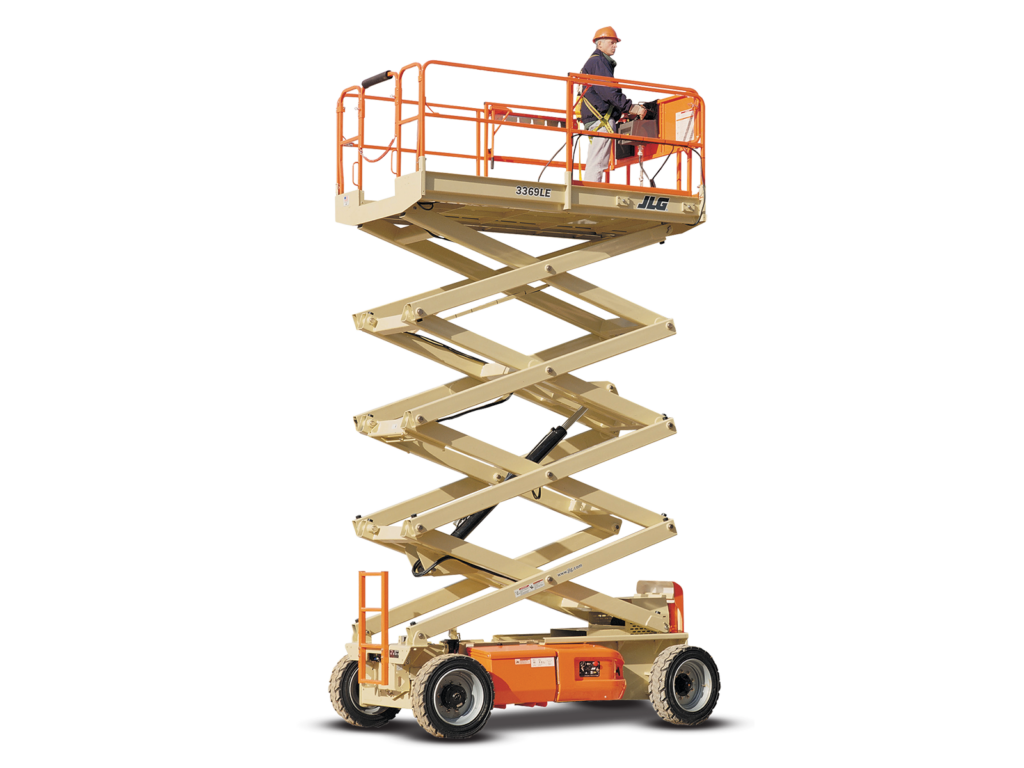

JLG 3369LE
Aerial
Key Specs
- Platform Height: 33 ft / 10.06 m
- Platform Capacity: 1000 lb / 453.59 kg
- Machine Width: 5 ft 9 in. / 1.75 m
Key Features
- Superior performance on or off slab
- Rugged terrain tires take you anywhere you want to go
- With optional hydraulic leveling jacks, uneven terrain is no problem
- Double the duty cycle of other scissor lifts so you can stay on the job longer
| Batteries | 8 x 6V, 370 amp-hour |
|---|---|
| Brakes | Spring Applied Hyd. Released Discs |
| Capacity - Hydraulic Reservoir | 8.5 gal. / 32.18 L |
| Charger | 21 Amp Automatic SCR |
| Drive Speed - Platform Elevated | 0.4 mph / 0.64 km/h |
| Drive Speed - Platform Lowered | 3 mph / 4.83 km/h |
| Gradeability - 2WD | 35 % |
| Gradeability - 4WD | 45 % |
| Ground Clearance | 8 in. / 0.2 m |
| Hydraulic Pump | Single Section Gear Pump |
| Lift Time | 38 sec. |
| Lower Time | 42 sec. |
| Machine Height - Rails Folded | 6 ft 5 in. / 1.96 m |
| Machine Height | 9 ft / 2.74 m |
| Machine Length | 10 ft 4 in. / 3.15 m |
| Machine Weight | 9760 lb / 4427.06 kg |
| Machine Width | 5 ft 9 in. / 1.75 m |
| Maximum Drive Height | 33 ft / 10.06 m |
| Maximum Ground Bearing Pressure | 57 psi / 3.99 Kg/cm2 |
| Platform Capacity - Extension | 250 lb / 113.40 kg |
| Platform Capacity | 1000 lb / 453.59 kg |
| Platform Dimension A | 9 ft 7 in. / 2.92 m |
| Platform Dimension B | 5 ft 5 in. / 1.65 m |
| Platform Extension Length | 3 ft / 0.91 m |
| Platform Height - Lowered | 5 ft 7 in. / 1.69 m |
| Platform Railing Height | 3 ft 8 in. / 1.1 m |
| Tire Size | 240/55 x 17.5 Non-Marking |
| Turning Radius - Outside | 15 ft 6 in. / 4.72 m |
| Wheelbase | 7 ft 7 in. / 2.3 m |
| Working Height | 39 ft / 11.89 m |
- Double the duty cycle of other scissor lifts so you can stay on the job longer
- Rugged terrain tires take you anywhere you want to go
- Superior performance on or off slab
- With optional hydraulic leveling jacks, uneven terrain is no problem
