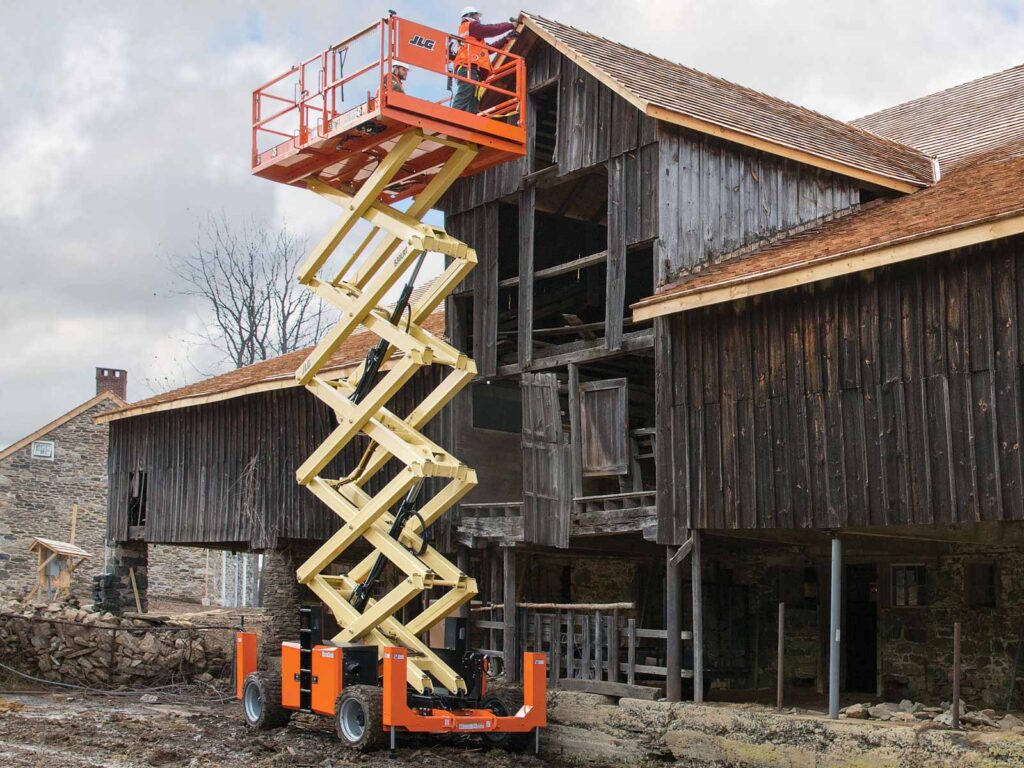

530LRT

JLG
Scissor Lifts

Find a location to get your local store information and inventory.

Find Location

Your Preferred Store

Change location Change location

Key Features & Specs

Key Specs

Platform Height: 53 ft / 16.15 m
Platform Capacity: 1500 lb / 680.39 kg
Machine Width: 7 ft 7 in. / 2.31 m

Key Features

Optimized power train: Allows for greater fuel efficiency
Standard 4 ft deck extension: Provides more space for people and materials; makes this model the biggest scissor lift JLG offers
Standard oscillating axle: Enhances terrainability across uneven surfaces while maintaining stability

Optimized power train Allows for greater fuel efficiency
Standard 4 ft deck extension Provides more space for people and materials; makes this model the biggest scissor lift JLG offers
Standard oscillating axle Enhances terrainability across uneven surfaces while maintaining stability

Specifications
Documents

Batteries: NA
Turning Radius - Outside: 19 ft 5 in. / 5.92 m
Lift Time: 59 sec.
Platform Height: 53 ft / 16.15 m
Engine Type - Diesel: Kubota D1305 24.8 hp 18.5 kW
Platform Extension Length: 4 ft / 1.22 m
Platform Capacity - Extension: 500 lb / 226.80 kg
Machine Height: 10 ft 1 in. / 3.07 m
Wheelbase: 9 ft 9 in. / 2.97 m
Lower Time: 55 sec.
Ground Clearance: 1 ft / 0.3 m
Engine Type - Dual Fuel: Kubota WG972 31 hp 23 kW
Platform Dimension A: 6 ft 2 in. / 1.87 m
Platform Height - Lowered: 7 ft / 2.13 m
Platform Capacity: 1500 lb / 680.39 kg
Gradeability: 40 %
Platform Dimension B: 13 ft / 3.96 m
Drive Speed - Platform Elevated: 0.5 mph / 0.80 km/h
Machine Weight: 17000 lb / 7711.07 kg
Capacity - Hydraulic Reservoir: 32 gal. / 121.13 L
Maximum Drive Height: 30 ft / 9.14 m
Drive Speed - Platform Lowered: 3.5 mph / 5.63 km/h
Machine Width: 7 ft 7 in. / 2.31 m
Platform Railing Height: 3 ft 1 in. / 0.94 m
Machine Height - Rails Folded: 7 ft 9 in. / 2.36 m
Tire Size: 12 x 16.5 FF
Machine Length: 17 ft / 5.18 m
Capacity - Fuel Tank: 22 gal. / 83.28 L
