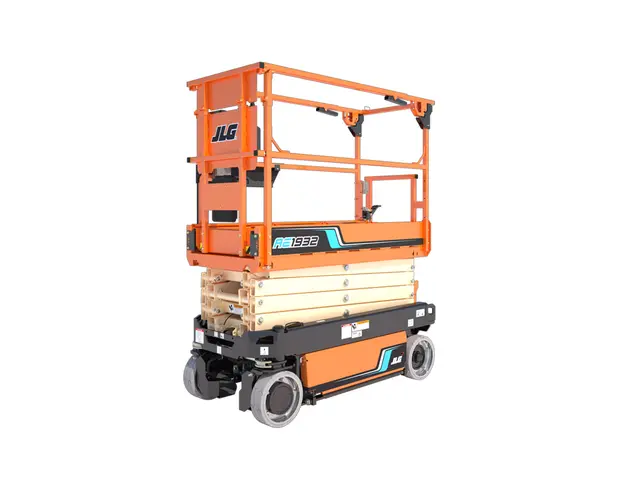

JLG AE1932
Aerial
Equipment Features
- 650W CAN-Charger (3.5 hr full charge)
- AC Receptacle in Platform
- ClearSky Smart Fleet™ Hardware (CS550)
| Battery | Single 24V Lithium Ion, 72 Ah |
|---|---|
| Brakes | Multi-Disc Friction |
| Charger | 27 amp, 650W |
| Drive Speed - Platform Elevated | 0.5 mph |
| Drive Speed - Platform Lowered | 4 mph |
| Drive System | 24V AC |
| Gradeability | 25% |
| Machine Weight | 3,450 lbs |
| Maximum Ground Bearing Pressure | 150 psi |
| Turning Radius - Inside | 0 in |
| Turning Radius - Outside | 66 in |
- USB Charger & Phone Holder
| Equipment Document | View Link |
|---|
Key Specs
- Max Platform Height: 19 ft
- Platform Capacity: 606 lbs
- Charge Time: 3.5 hrs
- Stowed Drive Speed: 4 mph
Key Features
- This model sets a new industry benchmark with almost no maintenance, with a new diagnostic and analyzer tool that can be used on any smart device.
- Delivers class-leading, single lithium ion battery power that lasts the life of the machine.
- Delivers a quick charge in five minutes for 100-ft of drive plus enough torque for loading.
- Efficient AC drive motors provide 4 mph stowed drive speed, while independent wheel motor control reduces tire wear and limits damage to sensitive flooring.
