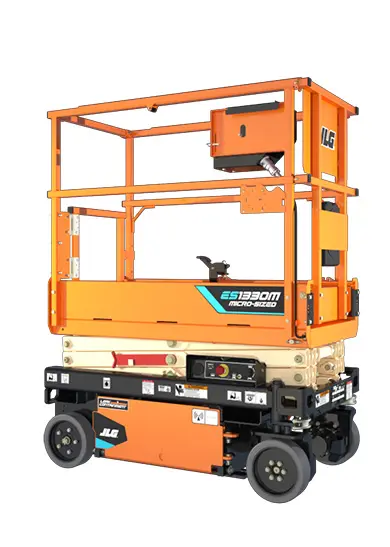

JLG ES1330M
Aerial
Equipment Features
- 22-in (55-cm) Foot-Actuated Deck Extension
- AC Receptacle in Platform
- ClearSky Smart Fleet™ Hardware (CS550)
| Batteries | 2 x 12V 105 amp-hr |
|---|---|
| Brakes | Electric, Friction |
| Charger | 650W Delta Q |
| Drive Speed - Platform Elevated | 0.5 mph |
| Drive Speed - Platform Lowered | 2.4 mph |
| Drive System | 24V Electric |
| Gradeability | 25% |
| Machine Weight | 1,984 lbs |
| Maximum Ground Bearing Pressure | 119 psi |
| Turning Radius - Inside | 0 in |
| Turning Radius - Outside | 55 in |
- USB Charger
| Equipment Document | View Link |
|---|
Key Specs
- Max Platform Height: 13 ft
- Platform Capacity: 500 lbs
- Number of Occupants: Indoor – 2, Outdoor – 1
- Stowed Drive Speed: 2.4 mph
Key Features
- Lightweight with low ground bearing pressure allows multiple machines working in one area and fits in a freight elevator for versatility on and around the job site.
- Maneuver more efficiently with a compact design featuring a narrow width, short length and stowed height with fixed rails while still delivering an industry-exclusive zero turning radius for work in tight spaces.
- Standard features such as leak containment and drive motor covers protect the machine and the job site, while a USB charger and phone cradle provide convenience in the platform.
- Reduce operating costs with electric drive and integrated components containing reduced hydraulic hoses and hydraulic fittings on the entire machine. Meaning, increased uptime as well as fewer leaks and service calls.
