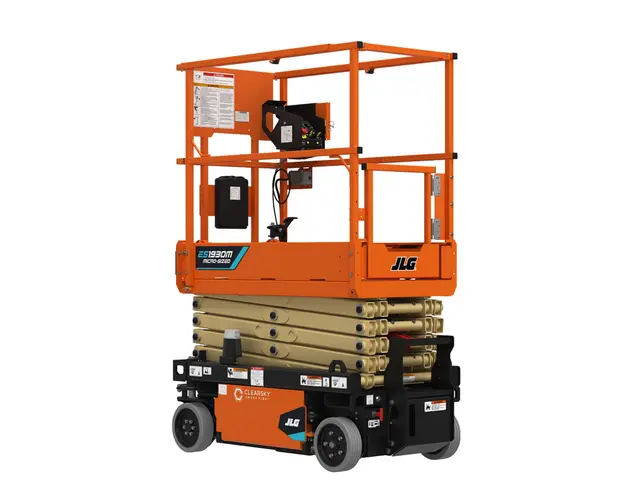

JLG ES1930M
Aerial
Equipment Features
- 27 amp Multi-Function Universal Charger
- 110V AC Receptacle in Platform
- ClearSky Smart Fleet™ Hardware (CS550)
| Batteries | 2x 12V 130 amp-hr |
|---|---|
| Brakes | Multi-Disc Friction |
| Capacity - Hydraulic Reservoir | 1.3 gal |
| Charger | 650W Delta Q |
| Drive Speed - Platform Elevated | 0.5 mph |
| Drive Speed - Platform Lowered | 3 mph |
| Drive System | 24V DC |
| Gradeability | 24% |
| Machine Weight | 2,798 lbs |
| Maximum Ground Bearing Pressure | 170 psi |
| Turning Radius - Inside | 0 in |
| Turning Radius - Outside | 55 in |
- USB Charger & Phone Holder
| Equipment Document | View Link |
|---|
Key Specs
- Max Platform Height: 18 ft 6 in
- Platform Capacity: 500 lbs
- Number of Occupants: Indoor – 2*, Outdoor – 1
- Stowed Drive Speed: 3 mph
Key Features
- Access tight spaces with fixed rails that fit through doorways while experiencing exceptional maneuverability featuring a zero turn radius, compact footprint with narrowest width in the market and low overall stowed height – all with a platform height of 18-ft 6-in.
- Protect delicate work surfaces with the standard leak containment system consisting of custom-fit trays to capture potential leaks.
- Maximize productivity and uptime with greater duty cycles versus the market leader and onboard technology exclusive to JLG including Variable Tilt and ClearSky Smart Fleet.
- Optimize versatility with the ability to configure the machine with an integrated mid-rail deck, offering an additional 19.5-in height in the platform.
* When optional mid-rail deck is in use, only one occupant.
