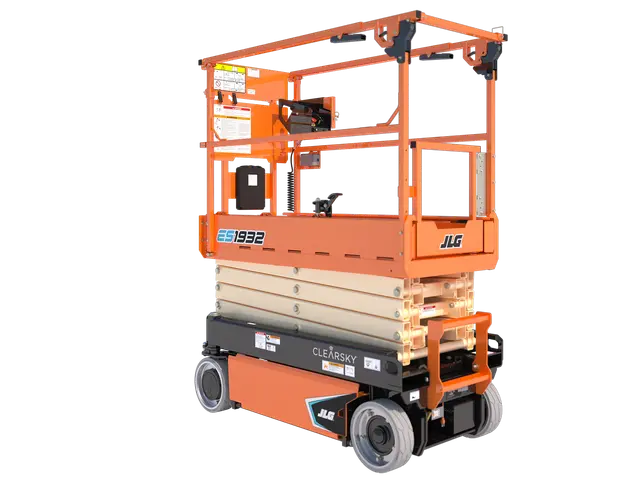

JLG ES1932
Aerial
Equipment Features
- 27 amp Multi-Function Universal Charger
- AC Receptacle in Platform
- ClearSky Smart Fleet™ Hardware (CS550)
| Batteries | 4 x 6V 220 amp-hr |
|---|---|
| Brakes | Multi-Disc Friction |
| Charger | 27 Amp |
| Drive Speed - Platform Elevated | 0.5 mph |
| Drive Speed - Platform Lowered | 3.0 mph |
| Drive System | 24V AC |
| Gradeability | 25% |
| Machine Weight | 3,450 lbs |
| Maximum Ground Bearing Pressure | 114 psi |
| Turning Radius - Inside | 0 in |
| Turning Radius - Outside | 66 in |
- USB Charger & Phone Holder
| Equipment Document | View Link |
|---|
Key Specs
- Platform Height: 19 ft
- Platform Capacity: 507 lbs
- Number of Occupants: Indoor – 2, Outdoor – 1
- Stowed Drive Speed: 3.0 mph
Key Features
- Refreshed design delivers electric drive, for up to double the battery life of a standard scissor.
- Our standard QuikFold rail system allows operators to fold the rails in a fraction of the time of a standard machine.
- Features a standard USB charger and phone holster, improving the operator experience while delivering a high degree of commonality with other JLG® scissors to simplify service.
- Wide range of accessories and options available to fit your job needs.
