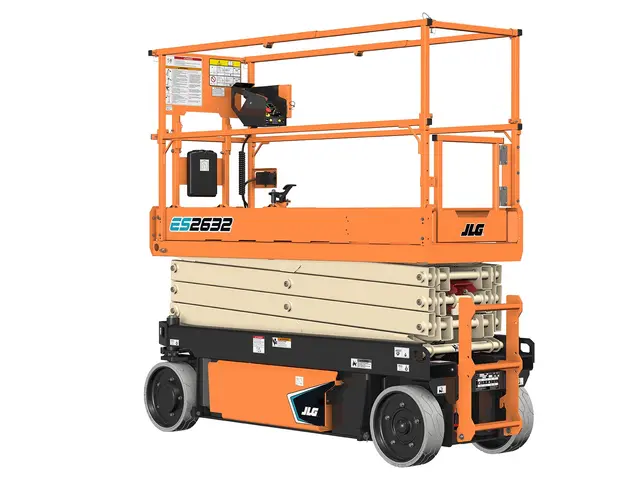

JLG ES2632
Aerial
Equipment Features
- 27 amp Multi-Function Universal Charger
- AC Receptacle in Platform
- ClearSky Smart Fleet™ Hardware (CS550)
| Batteries | 4 x 6V 220 amp-hr |
|---|---|
| Brakes | Multi-Disc Friction |
| Capacity - Hydraulic Reservoir | 3.2 gal |
| Charger | 27 Amp |
| Drive Speed - Platform Elevated | 0.5 mph |
| Drive Speed - Platform Lowered | 2.75 mph |
| Drive System | 24V AC |
| Gradeability | 25% |
| Machine Weight | 4,400 lbs |
| Maximum Ground Bearing Pressure | 107 psi |
| Turning Radius - Inside | 0 |
| Turning Radius - Outside | 88.2 in |
- USB Charger & Phone Holder
| Spec Sheet | View Link |
|---|
Key Specs
- Platform Height: 25 ft 5 in
- Platform Capacity: Indoor – 507 lbs, Outdoor – 275 lbs
- Number of Occupants: Indoor – 2, Outdoor – 1
- Stowed Drive Speed: 2.75 mph
Key Features
- Available with CleanGuard leak containment system, allowing for work on sensitive flooring.
- Delivers narrow width to fit through most standard doorways and tight aisles.
- Reduce operating costs with electric drive and integrated components containing reduced hydraulic hoses and hydraulic fittings on the entire machine. Meaning, increased uptime as well as fewer leaks and service calls.
- Run longer on a single charge with double the battery life.
