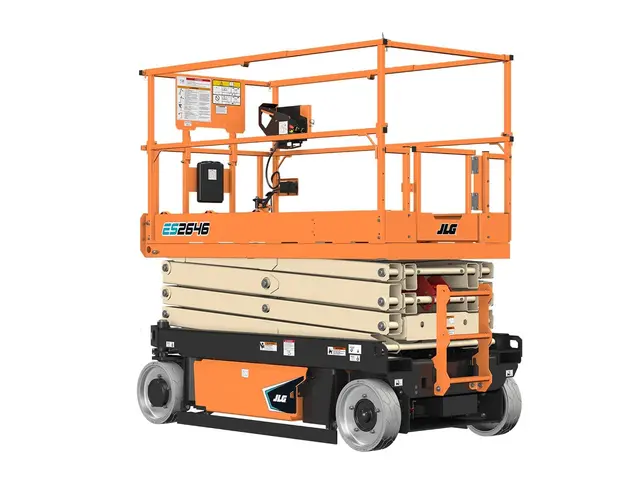

JLG ES2646
Aerial
Equipment Features
- 27 amp Multi-Function Universal Charger
- AC Receptacle in Platform
- ClearSky Smart Fleet™ Hardware (CS550)
| Batteries | 4 x 6V, 220 amp-hr |
|---|---|
| Brakes | Multi-Disc Friction |
| Capacity - Hydraulic Reservoir | 1.7 gal |
| Charger | 27 Amp |
| Drive Speed - Platform Elevated | 0.5 mph |
| Drive Speed - Platform Lowered | 3 mph |
| Gradeability | 25 % |
| Maximum Ground Bearing Pressure | 137 psi |
| Turning Radius - Inside | 0 |
| Turning Radius - Outside | 88 in |
- USB Charger & Phone Holder
| Equipment Document | View Link |
|---|
Key Specs
- Platform Height: 26 ft
- Platform Capacity: 1,200 lbs
- Number of Occupants: Indoor – 2, Outdoor – 1
- Stowed Drive Speed: 3 mph
Key Features
- The 1200-lb indoor and outdoor platform capacity beats the competition.
- Refreshed design delivers electric drive, for up to double the battery life of a standard scissor.
- Work in sensitive areas with optional CleanGuard leak containment system.
- Features a standard USB charger and phone holster, improving the operator experience while delivering a high degree of commonality with other JLG® scissors to simplify service.
