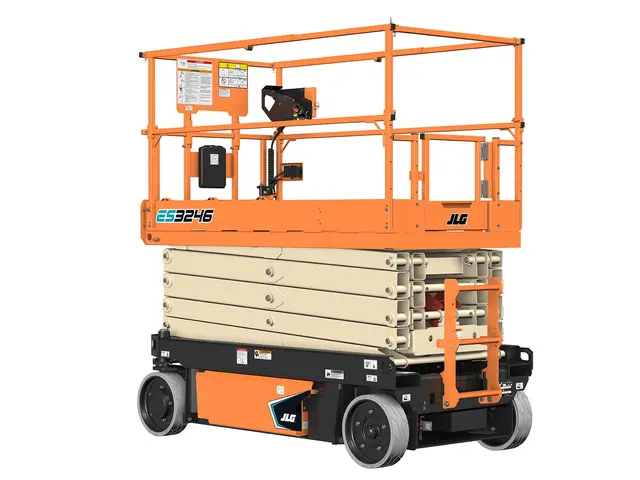

JLG ES3246
Aerial
Equipment Features
- 27 amp Multi-Function Universal Charger
- AC Receptacle in Platform
- ClearSky Smart Fleet™ Hardware (CS550)
| Batteries | 4 x 6V, 220 amp-hr |
|---|---|
| Brakes | Multi-Disc Friction |
| Capacity - Hydraulic Reservoir | 3.2 gal |
| Charger | 27 Amp |
| Drive Speed - Platform Elevated | 0.5 mph |
| Drive Speed - Platform Lowered | 3 mph |
| Gradeability | 25 % |
| Machine Weight | 5,620 lbs |
| Maximum Ground Bearing Pressure | 140 psi |
| Turning Radius - Inside | 0 |
| Turning Radius - Outside | 88 in |
- USB Charger & Phone Holder
| Equipment Document | View Link |
|---|
Key Specs
- Platform Height: 32 ft
- Platform Capacity: Indoor – 705 lbs, Outdoor – 507 lbs
- Number of Occupants: Indoor – 2, Outdoor – 1
- Stowed Drive Speed: 3 mph
Key Features
- Refreshed design delivers electric drive, for up to double the battery life of a standard scissor.
- Reduce operating costs with electric drive and integrated components containing reduced hydraulic hoses and hydraulic fittings on the entire machine. Meaning, increased uptime as well as fewer leaks and service calls.
- Work in sensitive areas with optional CleanGuard leak containment system.
- Features a standard USB charger and phone holster, improving the operator experience while delivering a high degree of commonality with other JLG® scissors to simplify service.
