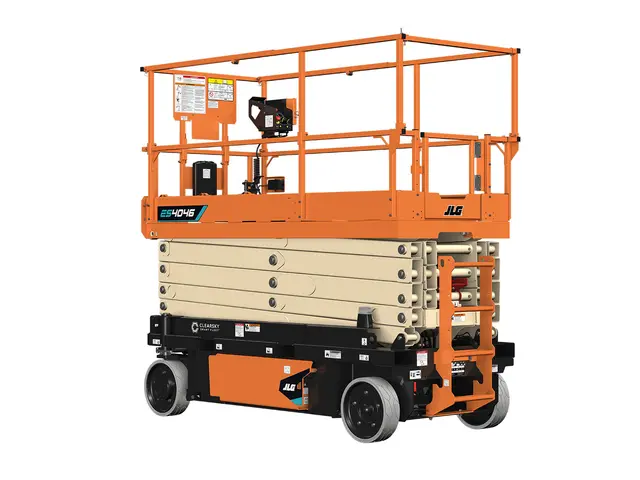

JLG ES4046
Aerial
Equipment Features
- 27 amp Multi-Function Universal Charger
- ClearSky Smart Fleet™ Hardware (CS550)
- USB Charger & Phone Holder
| Batteries | 4 x 6V 255 AH |
|---|---|
| Brakes | Multi-Disc Friction |
| Charger | 27 Amp |
| Drive Speed - Platform Elevated | 0.5 mph |
| Drive Speed - Platform Lowered | 3.0 mph |
| Drive System | 24V AC |
| Gradeability | 25% |
| Machine Weight | 6,230 lbs |
| Maximum Ground Bearing Pressure | 152 psi |
| Turning Radius - Inside | 0 in |
| Turning Radius - Outside | 94.4 in |
| Equipment Document | View Link |
|---|
Key Specs
- Platform Height: Indoor – 39.1 ft, Outdoor – 28 ft 8.5 in
- Platform Capacity: Indoor – 770 lbs, Outdoor – 550 lbs
- Number of Occupants: Indoor – 3, Outdoor – 1
- Stowed Drive Speed: 3.0 mph
Key Features
- Enhance productivity with more than a 40% increase in duty cycles over its hydraulic drive predecessor and an indoor capacity of three occupants.
- Reduce operating costs with electric drive and integrated components containing reduced hydraulic hoses and hydraulic fittings on the entire machine.
- Work in sensitive areas with optional CleanGuard leak containment system.
- Features a standard USB charger and phone holster, improving the operator experience while delivering a high degree of commonality with other JLG® scissors to simplify service.
