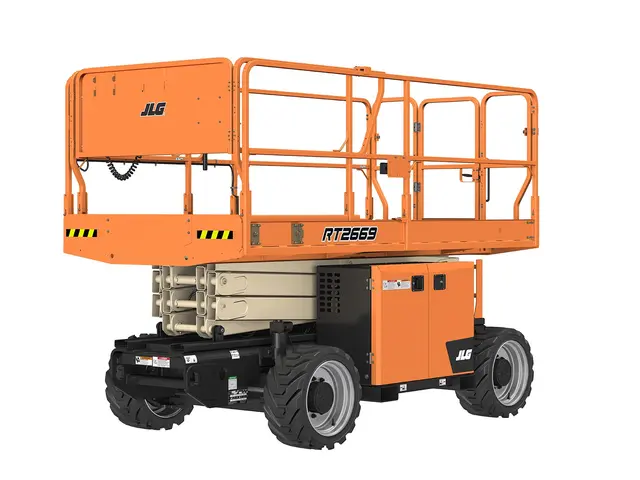

JLG RT2669
Aerial
Equipment Features
- 110V-AC Receptacle In Platform
- 42-in Roll-out Deck Extension
- ClearSky Smart Fleet™ Hardware (CS550)
| Engine - Dual Fuel | Kubota WG972-GL-E4 31 hp |
|---|---|
| Engine - Diesel Fuel | Kubota D1305-E4B 24.8 hp |
| Fuel Tank Capacity | 10 gal |
| Drive Speed - Platform Elevated | 0.5 mph |
| Drive Speed - Platform Lowered | 3.5 mph |
| Gradeability | 40% |
| Machine Weight | 8,250 lbs |
| Maximum Ground Bearing Pressure | 40 psi |
| Turning Radius - Inside | 83 in |
| Turning Radius - Outside | 175 in |
- USB Charger & Phone Holder
| Equipment Document | View Link |
|---|
Key Specs
- Platform Height: 26 ft 2 in
- Platform Capacity: 1,500 lbs
- Machine Width: 69.3 in
- Stowed Drive Speed: 3.5 mph
Key Features
- Engine powered rough terrain models offer drive capability at full height, limiting unnecessary trips up and down for working professionals.
- An optional QuikLevel Advanced system allows the machine to level on a side slope, helping operators position and drive while elevated closer to the job.
- Delivers the latest technology, featuring an LCD platform control box with LiftSense technology and USB charging for next-level, real-time productivity and service communication to the operator.
- Utilizes higher part commonality and a maintenance-free 2WD AC drive system for simplified service across the rough terrain family.
