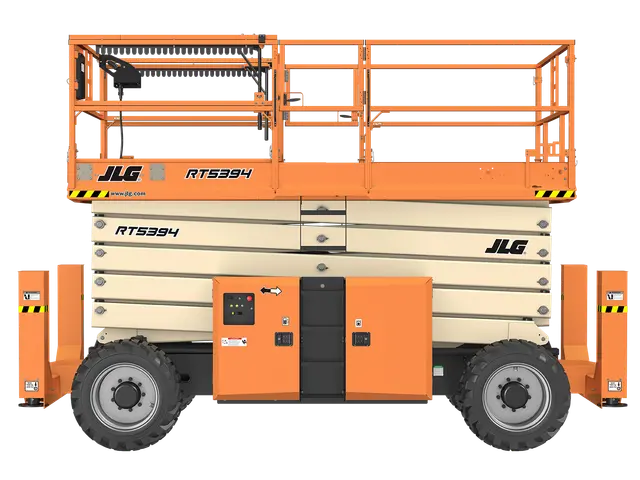

JLG RT5394
Aerial
Equipment Features
- 110V-AC Receptacle In Platform
- 4-ft (1.22-m) Manual Deck Extension
- ClearSky Smart Fleet™ Hardware (CS550)
| Engine - Dual Fuel | Kubota WG6972-GL-E4 31 hp |
|---|---|
| Engine - Diesel Fuel | Kubota D1305-E4B 24.8 hp |
| Fuel Capacity | 22 gal |
| Drive Speed - Platform Elevated | 0.5 mph |
| Drive Speed - Platform Lowered | 3.5 mph |
| Gradeability | 40% |
| Machine Weight | 17,110 lbs |
| Turning Radius - Inside | 9 ft |
| Turning Radius - Outside | 19 ft 9 in |
- Proportional Drive/Lift Up/ Lift Down
| Equipment Document | View Link |
|---|
Key Specs
- Platform Height: 53ft
- Platform Capacity: 1,500 lbs
- Machine Width: 7 ft 7 in
- Stowed Drive Speed: 3.5 mph
Key Features
- Enhanced stability on uneven surfaces with a standard oscillating axle for better traction and grade climbing ability.
- With the operator in mind, the platform is designed to shed debris and to allow for smoother extension deployment.
- The fully accessible hydraulic and engine compartments provide for enhanced ease of service.
- A standard 4-ft deck extension provides more space for people and materials.
