Home / New Equipment / Aerial / Slab Scissor Lifts / GS-3232
Genie GS-3232
Aerial
Equipment Specifications
| Capacity | 500 lb | 227 kg |
|---|---|
| Machine Length | 8 ft | 2.44 m |
| Machine Width | 2 ft 8 in | 0.81 m |
| Max Platform Height | 32 ft | 9.75 m |
| Weight | 5,185 lb | 2,352 kg |
| Capacity | 500 lb | 227 kg |
|---|---|
| Machine Length | 8 ft | 2.44 m |
| Machine Width | 2 ft 8 in | 0.81 m |
| Max Platform Height | 32 ft | 9.75 m |
| Weight | 5,185 lb | 2,352 kg |

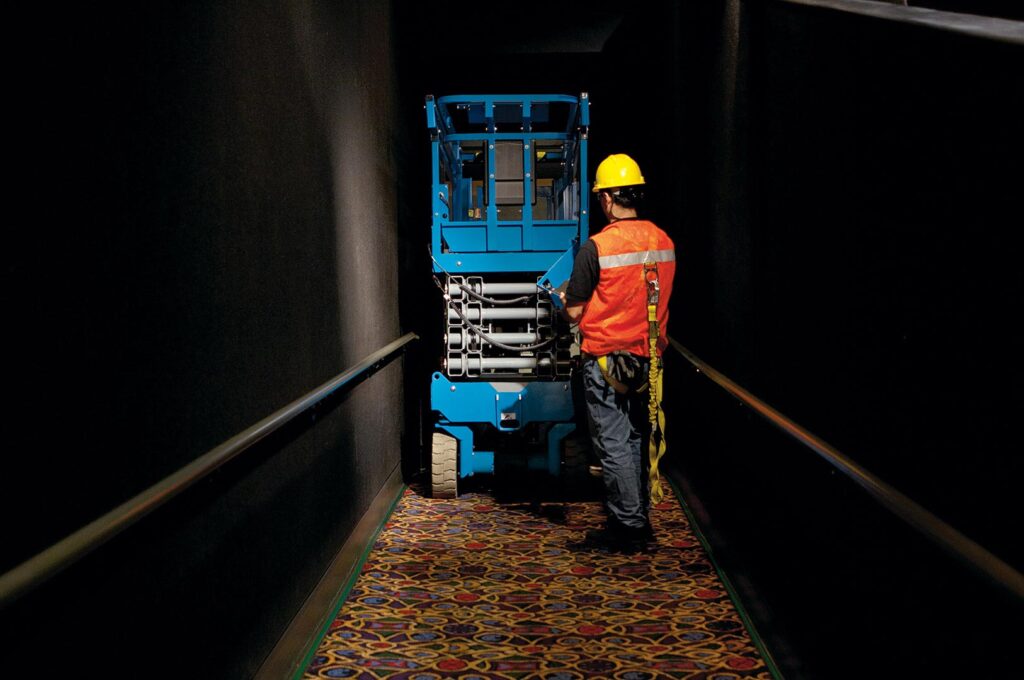

The quiet, zero-emission Genie® GS™-3232 slab scissor lift is ideal for operation in sound-sensitive environments. With front-wheel drive and zero inside turning radius, it boasts excellent maneuverability in tight spaces. It is purpose-built to perform in indoor and outdoor construction, maintenance and installation applications on firm, level surfaces.
Overview
- Automatic leveling hydraulic outrigger system levels machine on slopes up to 5˚
- Link stack is centered at full elevation and platform extension for machine rigidity
- Compact dimensions and folding guardrails — easily passes through standard single or double doors
- 3-ft (.91 m) extension deck provides maximum platform workspace for workers and tools
Chassis Options
- AGM maintenance-free batteries
- Automotive-style horn
- Biodegradable hydraulic oil
- Biodegradable hydraulic oil(for GS-3232, GS-3246)
- Power inverter, 800W, 24V DC, 120V AC, 60 Hz
Certification Options
- EE Certification
Platform Options
- Air line to platform: ? in. inner diameter
