Genie GS-3246
Aerial
Equipment Specifications
| Capacity | 700 lb | 318 kg |
|---|---|
| Machine Length | 8 ft | 2.44 m |
| Machine Width | 3 ft 10 in | 1.16 m |
| Max Platform Height | 32 ft | 9.75 m |
| Weight | 5,211 lb | 2,364 kg |
| Capacity | 700 lb | 318 kg |
|---|---|
| Machine Length | 8 ft | 2.44 m |
| Machine Width | 3 ft 10 in | 1.16 m |
| Max Platform Height | 32 ft | 9.75 m |
| Weight | 5,211 lb | 2,364 kg |

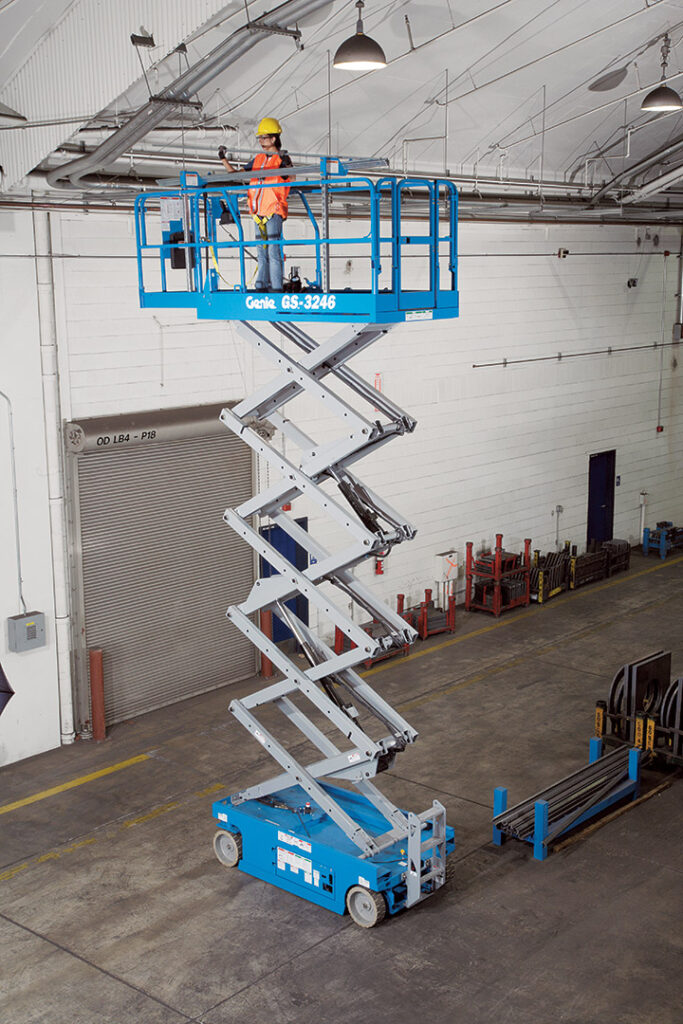

Boasting front-wheel drive and zero inside turning radius, the Genie® GS™-3246 slab scissor lift is excellent for indoor and outdoor construction, maintenance and installation applications on firm, level surfaces. It’s quiet, zero-emission electric operation is ideal for sound-sensitive environments.
Overview
- 39-in (1 m) roll-out platform extension
- Proportional controls for lift and drive functions
- Multiple disc brakes provide smooth deceleration
- Emergency stop at both platform and ground controls — and a tilt sensor with an audible alarm — for added safety
Chassis Options
- AGM maintenance-free batteries
- Automotive-style horn
- Biodegradable hydraulic oil
- Biodegradable hydraulic oil(for GS-3232, GS-3246)
- Power inverter, 800W, 24V DC, 120V AC, 60 Hz
Certification Options
- EE Certification
Platform Options
- Air line to platform: ? in. inner diameter
