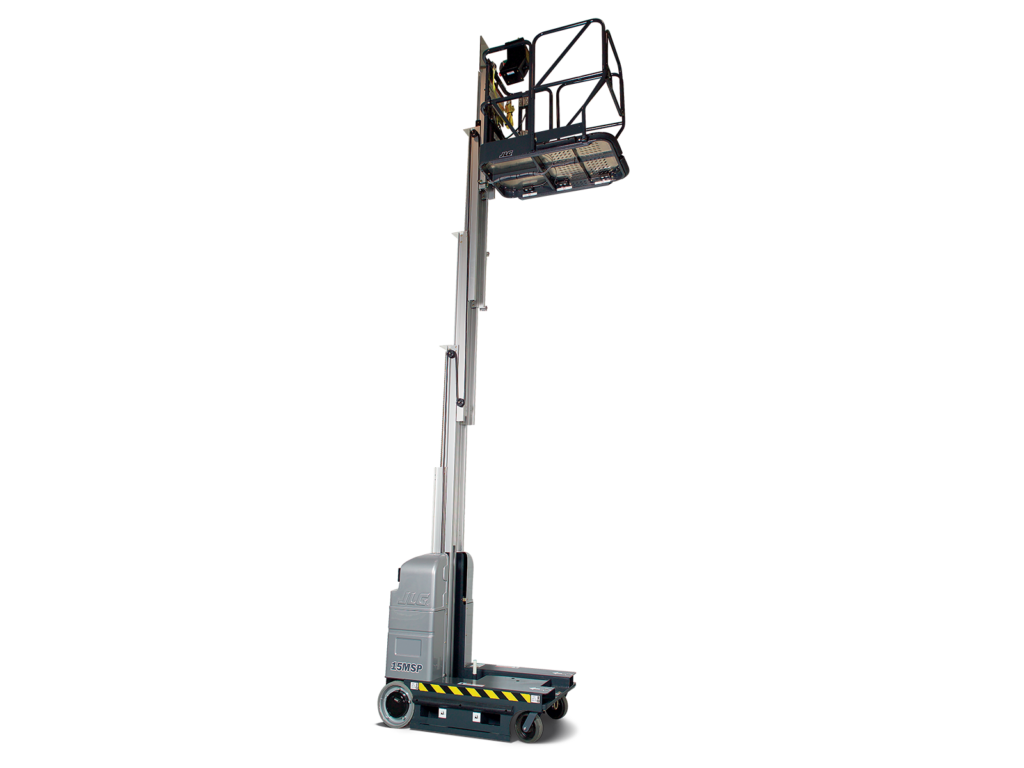

JLG 15MSP
Aerial
Key Specs
- Platform Height: 15 ft 3 in. / 4.65 m
- Machine Width: 2 ft 6 in. / 0.75 m
Key Features
- Zero turning radius for superior maneuverability
- Built-in automatic charger for less downtime on the job
- One-hand operation for increased operator comfort
- Driveable at full height for increased efficiency
| Batteries | 2 Sealed 100 amp-hr Glass Mat (AGM) |
|---|---|
| Drive Speed - Platform Elevated | 0.6 mph / 0.97 km/h |
| Drive Speed - Platform Lowered | 3.5 mph / 5.63 km/h |
| Drive System | 4 Brush Direct Electric |
| Gradeability | 20 % |
| Ground Clearance | 2 in. / 0.05 m |
| Ground Entry Height | 1 ft 6 in. / 0.46 m |
| Machine Height | 6 ft 6 in. / 1.98 m |
| Machine Length | 4 ft 6 in. / 1.36 m |
| Machine Weight | 2425 lb / 1099.96 kg |
| Machine Width | 2 ft 6 in. / 0.75 m |
| Maximum Drive Height | 15 ft 3 in. / 4.65 m |
| Maximum Lift Height | 15.3 ft / 4.65 m |
| Platform Capacity | 500 lb / 226.80 kg |
| Platform Dimension A | 4 ft / 1.22 m |
| Platform Dimension B | 2 ft 4 in. / 0.71 m |
| Wheel Size - Front Caster | 8 x 2.5" |
| Wheel Size - Rear | 12.62 x 4" |
| Working Height | 21 ft 3 in. / 6.48 m |
- Built-in automatic charger for less downtime on the job
- Driveable at full height for increased efficiency
- One-hand operation for increased operator comfort
- Zero turning radius for superior maneuverability
