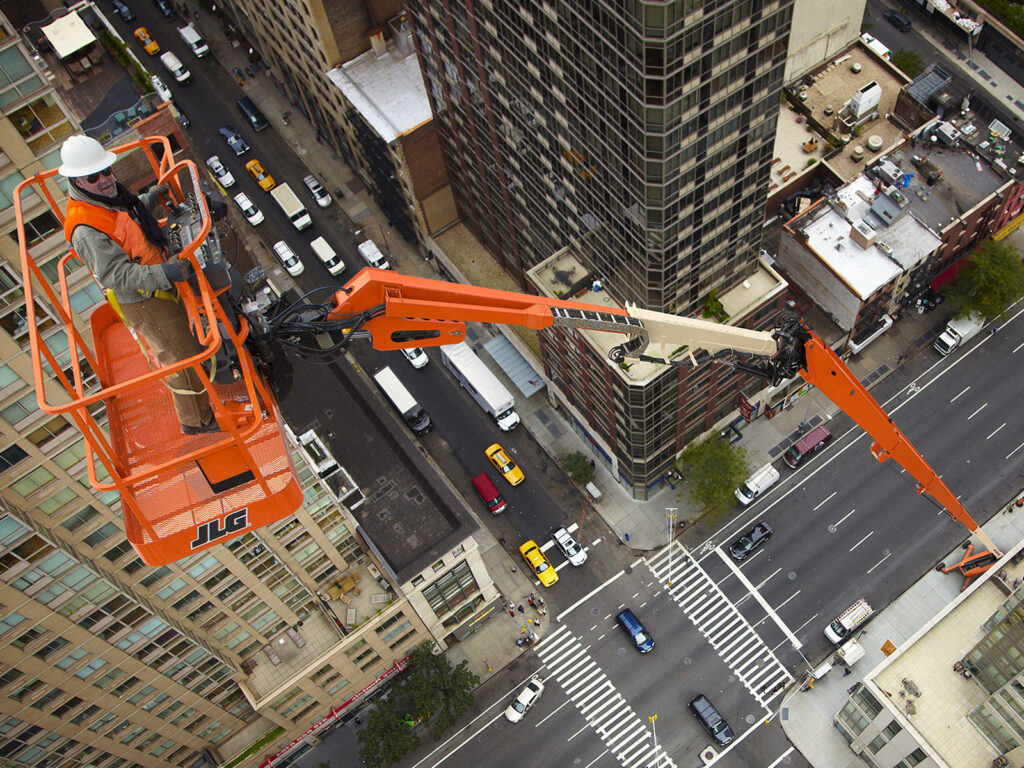

JLG 1850SJ
Aerial
Key Specs
- Platform Height: 185 ft 7 in. / 56.57 m
- Platform Capacity – Restricted: 1000 lb / 453.59 kg
- Platform Capacity – Unrestricted: 500 lb / 226.80 kg
- Horizontal Outreach: 80 ft / 24.38 m
Key Features
- Much faster to full height
- No oversized load permit needed (over weight permit is required for highway transportation)
- Telescoping jib provides 2.9 million cubic feet of work area
- Axles take approximately one minute to extend or retract
| Auxiliary Power | 12 Volts DC |
|---|---|
| Capacity - Fuel Tank | 52.8 gal. / 199.87 L |
| Capacity - Hydraulic Reservoir | 75.1 gal. / 284.28 L |
| Drive Speed - 4WD | 2.8 mph / 4.51 km/h |
| Engine Type - Diesel | Deutz TD3.6L 99.8 HP |
| Gradeability - 4WD | 40 % |
| Ground Clearance | 1 ft 4 in. / 0.41 m |
| Horizontal Outreach | 80 ft / 24.38 m |
| Jib - Range of articulation | 120 Degrees |
| Machine Height | 10 ft / 3.05 m |
| Machine Length | 63 ft 10 in. / 19.44 m |
| Machine Weight | 60300 lb / 27351.62 kg |
| Machine Width | 8 ft 2 in. / 2.49 m |
| Maximum Ground Bearing Pressure | 119.6 psi / 8.38 Kg/cm2 |
| Overall Width (Axles Extended) | 16 ft 6 in. / 5.03 m |
| Platform Capacity - Restricted | 1000 lb / 453.59 kg |
| Platform Capacity - Unrestricted | 500 lb / 226.80 kg |
| Platform Dimension A | 3 ft / 0.91 m |
| Platform Dimension B | 8 ft / 2.44 m |
| Platform Height | 185 ft 7 in. / 56.57 m |
| Swing Type | Continuous |
| Swing | 360 Degrees |
| Tailswing | 7 ft 7 in. / 2.31 m |
| Tire Size | 445/50D710 Foam Filled |
| Transport Length | 47 ft 10 in. / 14.57 m |
| Turning Radius - Outside (axles extended) | 21 ft 8 in. / 6.6 m |
| Turning Radius - Outside (axles retracted) | 31 ft 3 in. / 9.53 m |
- Axles take approximately one minute to extend or retract
- Much faster to full height
- No oversized load permit needed (over weight permit is required for highway transportation)
- Telescoping jib provides 2.9 million cubic feet of work area
