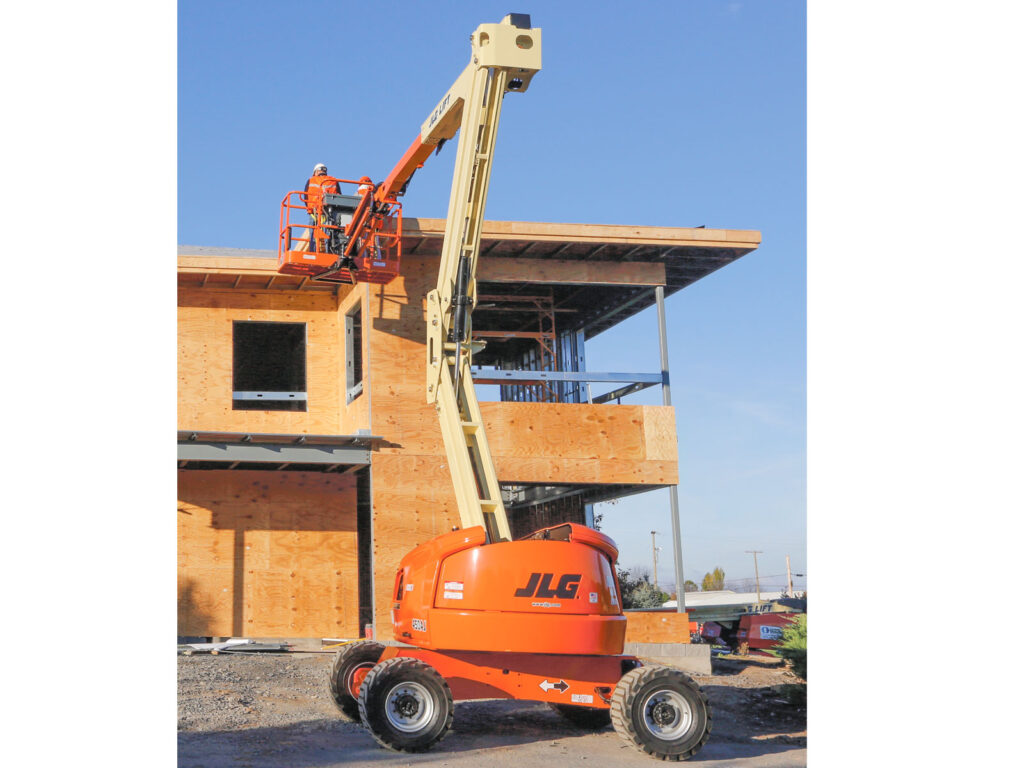

JLG 450AJ
Aerial
Key Specs
- Platform Height: 45 ft / 13.72 m
- Platform Capacity – Unrestricted: 550 lb / 249.48 kg
- Horizontal Outreach: 25 ft / 7.62 m
Key Features
- Improved multifunction capability increases productivity
- More durability and serviceability thanks to the new DuraTough hood design
- Larger capacity at 550 lb
| Auxiliary Power | 12 Volts DC |
|---|---|
| Axle Oscillation | 4 in. / 0.1 m |
| Capacity - Fuel Tank | 16 gal. / 60.57 L |
| Capacity - Hydraulic Reservoir | 36 gal. / 136.27 L |
| Drive Speed - 4WD | 4.3 mph / 6.84 km/h |
| Engine Type - Diesel | Deutz D2.9 L4 Tier 4 Final 49 hp |
| Engine Type - Dual Fuel | GM Vortec 3000 MPFI 82 hp |
| Gradeability - 4WD | 45 % |
| Ground Clearance | 1 ft / 0.3 m |
| Horizontal Outreach | 25 ft / 7.62 m |
| Jib - Range of articulation | 144 Degrees |
| Machine Height | 7 ft 5 in. / 2.27 m |
| Machine Length | 21 ft 7 in. / 6.58 m |
| Machine Weight | 12650 lb / 5737.94 kg |
| Machine Width | 7 ft 9 in. / 2.35 m |
| Maximum Ground Bearing Pressure | 48 psi / 3.36 Kg/cm2 |
| Platform Capacity - Unrestricted | 550 lb / 249.48 kg |
| Platform Dimension A | 2 ft 6 in. / 0.76 m |
| Platform Dimension B | 6 ft / 1.83 m |
| Platform Height | 45 ft / 13.72 m |
| Swing Type | Non-Continuous |
| Swing | 355 Degrees |
| Tailswing | 0 in. / 0 m |
| Tire Size | 33/1550 x 16.5 Superwide |
| Turning Radius - Outside | 15 ft 8 in. / 4.78 m |
| Up and Over Height | 24 ft / 7.32 m |
- Improved multifunction capability increases productivity
- Larger capacity at 550 lb
- More durability and serviceability thanks to the new DuraTough hood design
