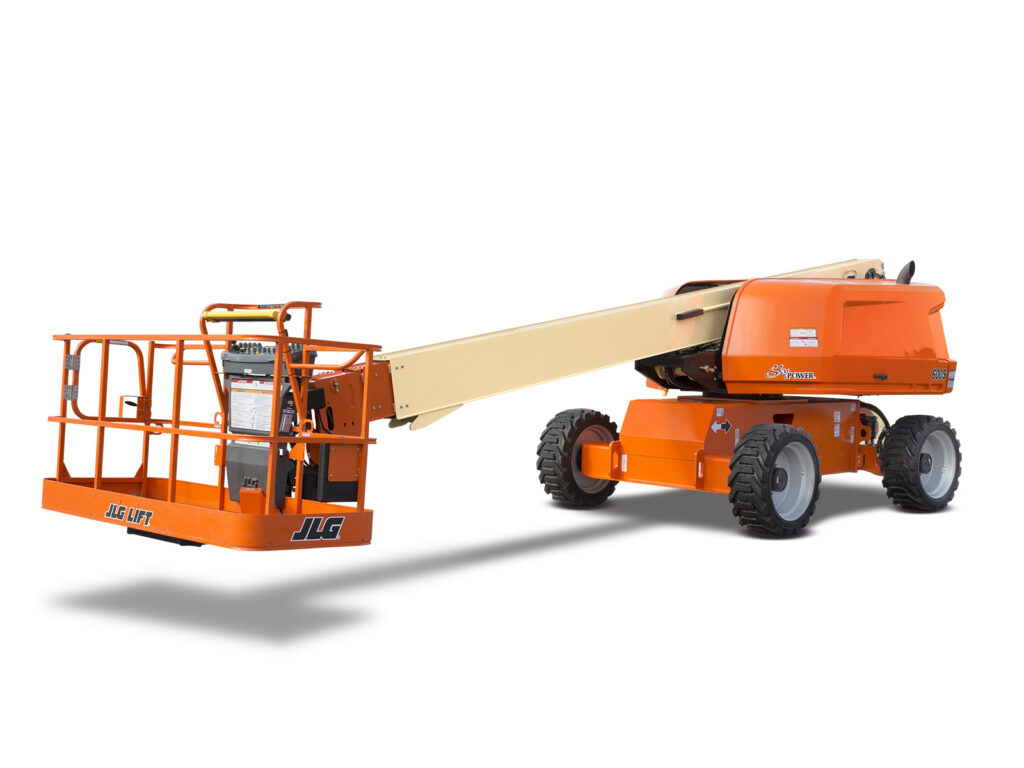

JLG 600S
Aerial
Key Specs
- Platform Height: 59 ft 8 in. / 18.19 m
- Platform Capacity – Restricted: 1000 lb / 453.59 kg
- Platform Capacity – Unrestricted: 600 lb / 272.16 kg
- Horizontal Outreach: 50 ft 2 in. / 15.29 m
Key Features
- Greater Platform Capacity – Newly designed with 600 lb of platform capacity
- Faster Ascent – Reaches full height quicker for higher productivity on the job site
- Easy to Transport – Fit two on one truck with no overweight permit
| Auxiliary Power | 12 Volts DC |
|---|---|
| Axle Oscillation | 8 in. / 0.2 m |
| Capacity - Fuel Tank | 31 gal. / 117.35 L |
| Capacity - Hydraulic Reservoir | 34 gal. / 128.70 L |
| Drive Speed - 4WD | 3.8 mph / 6.12 km/h |
| Engine Type - Diesel | Deutz TD2.9L4 67 hp (50 kW) Tier 4 Final |
| Engine Type - Dual Fuel | Ford MSG425-DF 84 hp (62.6 kW) |
| Gradeability - 4WD | 45 % |
| Ground Clearance | 11 in. / 0.29 m |
| Horizontal Outreach | 50 ft 2 in. / 15.29 m |
| Machine Height | 8 ft 2 in. / 2.5 m |
| Machine Length | 28 ft 7 in. / 8.71 m |
| Machine Weight | 21461 lb / 9734.55 kg |
| Machine Width | 8 ft 2 in. / 2.49 m |
| Maximum Ground Bearing Pressure | 78 psi / 5.46 Kg/cm2 |
| Platform Capacity - Restricted | 1000 lb / 453.59 kg |
| Platform Capacity - Unrestricted | 600 lb / 272.16 kg |
| Platform Dimension A | 3 ft / 0.91 m |
| Platform Dimension B | 8 ft / 2.44 m |
| Platform Height | 59 ft 8 in. / 18.19 m |
| Swing | 360 Degrees |
| Tailswing | 4 ft / 1.22 m |
| Tire Size | 41/181.1 X 22.5 |
| Turning Radius - Outside (2WS) | 19 ft 7 in. / 5.97 m |
| Turning Radius - Outside (4WS) | 12 ft 8 in. / 3.86 m |
- Easy to Transport - Fit two on one truck with no overweight permit
- Faster Ascent - Reaches full height quicker for higher productivity on the job site
- Greater Platform Capacity - Newly designed with 600 lb of platform capacity
