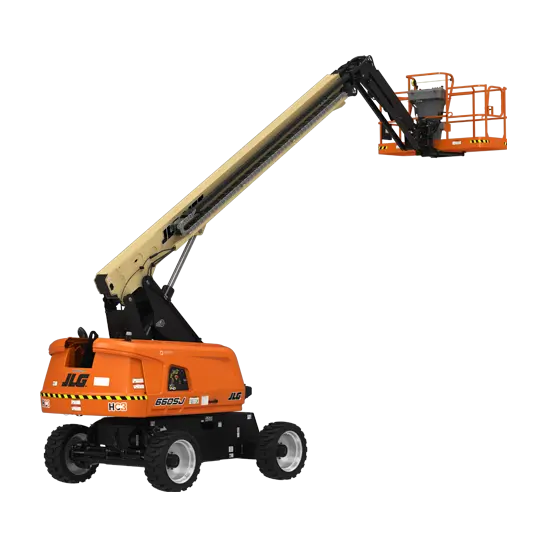

JLG 660SJ HC3
Aerial
Equipment Features
- 12V-DC Auxiliary Power
- 110V-AC Receptacle in the Platform
- ClearSky Smart Fleet™ Hardware (CS550)
| Auxiliary Power | 12 Volts DC |
|---|---|
| Axle Oscillation | 7.4 in |
| Capacity - Fuel Tank | 31 gal. / 117.35 L |
| Capacity - Hydraulic Reservoir | 34 gal. / 128.70 L |
| Drive Speed - 4WD | 3.8 mph / 6.12 km/h |
| Engine Type - Diesel | Deutz TD2.9L4 Tier 4 Final 67hp (50kw) |
| Engine Type - Dual Fuel | Ford MSG425-DF 84hp (62kw) |
| Gradeability - 4WD | 45 % |
| Horizontal Outreach | 57 ft 1 in. / 17.4 m |
| Machine Weight | 29,281 lbs |
| Maximum Ground Bearing Pressure | 112 psi |
| Platform Capacity - Restricted | 750 lbs |
| Platform Capacity - Unrestricted | 660 lbs |
| Platform Height | 65 ft 8 in. / 20.02 m |
| Swing | 360 Degrees Continuous |
| Turning Radius - Outside (2WS) | 18 ft 3.9 in |
| Turning Radius - Outside (4WS) | 9 ft 11 in |
- SkyGuard SkyLine™
- USB-A and USB-C Charger
| Equipment Document | View Link |
|---|
Key Specs
- Platform Height: 65 ft 8 in. / 20.02 m
- Platform Capacity – Restricted: 750 lb
- Platform Capacity – Unrestricted: 660 lb
- Horizontal Outreach: 57 ft 1 in. / 17.4 m
- Swing: 360 Degrees Continuous
Key Features
- Utilizes three working zones for enhanced capacity; up to three workers and tools can fit onto the platform.
- Utilizes intuitive platform controls to reduce operator training time.
- Delivers a zero calibration automatic load sensing system that eliminates the need to use external weights to calibrate the machine.
- Available accessories and options provide the flexibility to upfit the machine to meet unique job requirements.
