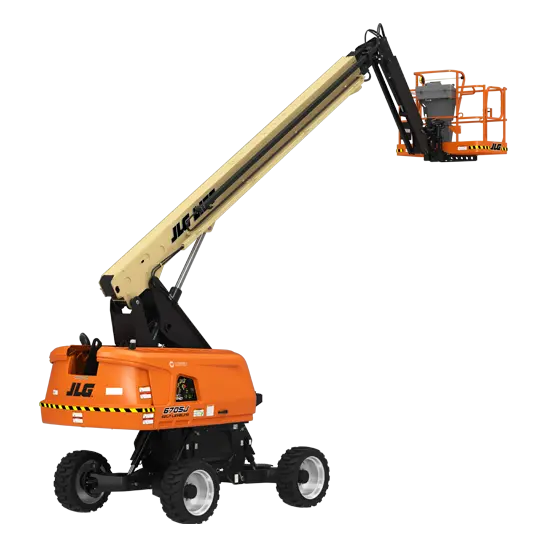

JLG 670SJ
Aerial
Equipment Features
- 12V-DC Auxiliary Power
- 110V-AC Receptacle in the Platform
- ClearSky Smart Fleet™ Hardware (CS550)
| Capacity - Fuel Tank | 31 gal. / 117.35 L |
|---|---|
| Capacity - Hydraulic Reservoir | 34 gal. / 128.70 L |
| Drive Speed - 4WD | 3.8 mph / 6.12 km/h |
| Engine Type - Diesel | Deutz T4F 67 hp |
| Gradeability - 4WD | 45 % |
| Horizontal Outreach | 57 ft 1 in. / 17.4 m |
| Machine Weight | 25,341 lbs |
| Maximum Ground Bearing Pressure | 85 psi |
| Platform Capacity - Restricted | 750 lbs |
| Platform Capacity - Unrestricted | 550 lbs |
| Platform Height | 66 ft 10 in |
| Swing | 360 Degrees Continuous |
| Turning Radius - Outside | 18 ft 7.6 in |
| Turning Radius - Inside | 8 ft 4.4 in |
- SkyGuard SkyLine™
- USB-A and USB-C Charger
| Equipment Document | View Link |
|---|
Key Specs
- Platform Height: 66 ft 10 in
- Platform Capacity – Restricted: 750 lb
- Platform Capacity – Unrestricted: 550 lb
- Horizontal Outreach: 57 ft 1 in. / 17.4 m
- Drive Speed: 3.8 mph
Key Features
- Get right to work with smartadapting technology to level on slopes up to 10 degrees, while driving at full height
- Remove the need for cribbing or grading the job site, trial-and-error positioning or use of larger equipment to reach over uneven terrain.
- Less bouncing around in the platform helps operators feel less fatigued and less distracted by tools shifting in transit.
- A fully integrated advanced control system provides real-time data right on the job site.
