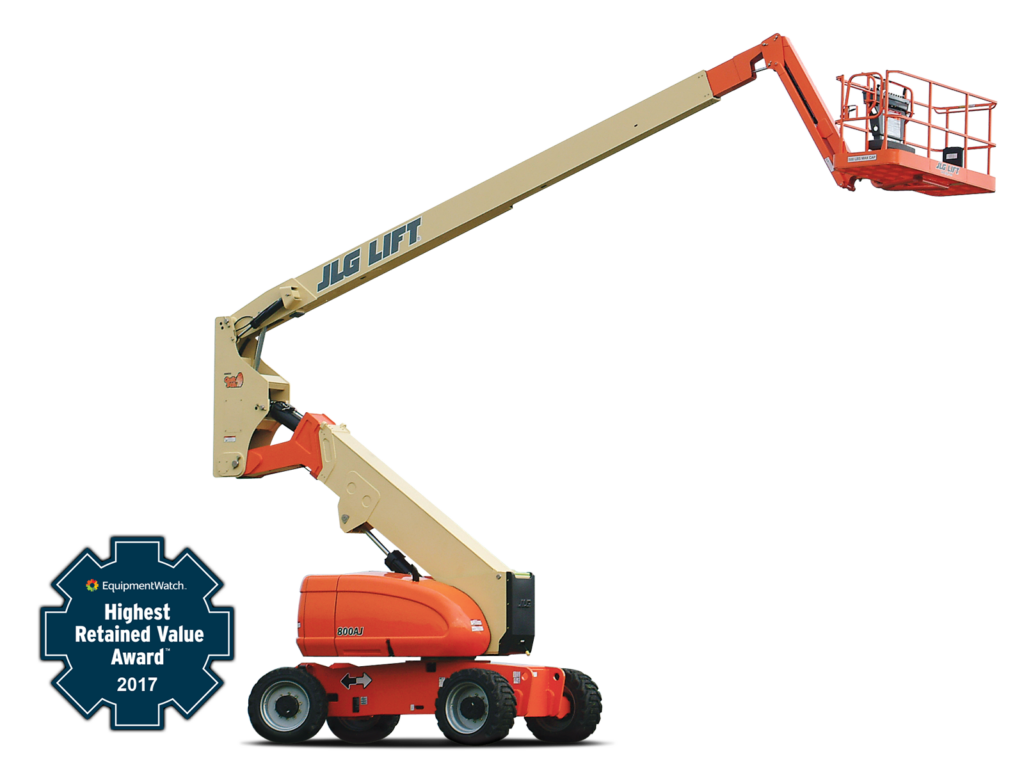

JLG 800AJ
Aerial
Key Specs
- Platform Height: 80 ft / 24.38 m
- Platform Capacity – Unrestricted: 500 lb / 226.80 kg
- Horizontal Outreach: 51 ft 10 in. / 15.8 m
Key Features
- Get the extra reach and versatility you need with the best reach envelope in the industry
- With Workstation in the Skyä accessories, you will have all you need to get the job done
- Advanced Design Electronics System reduces your costs by increasing your fuel efficiency and reducing emissions
| Auxiliary Power | 12 Volts DC |
|---|---|
| Axle Oscillation | 0 in. / 0 m |
| Capacity - Fuel Tank | 39 gal. / 147.63 L |
| Capacity - Hydraulic Reservoir | 40 gal. / 151.42 L |
| Drive Speed - 2WD | 3 mph / 4.83 km/h |
| Engine Type - Diesel | DEUTZ TD 2.9L Tier 4 Final 67 hp |
| Engine Type - Dual Fuel | Ford MSG425 84hp |
| Gradeability - 2WD | 30 % |
| Gradeability - 4WD | 45 % |
| Ground Clearance | 1 ft / 0.3 m |
| Horizontal Jib Rotation | 0 Degrees |
| Horizontal Outreach | 51 ft 10 in. / 15.8 m |
| Jib - Range of articulation | 130 Degrees |
| Machine Height | 9 ft 10 in. / 3 m |
| Machine Length | 36 ft 6 in. / 11.13 m |
| Machine Weight | 34130 lb / 15481.11 kg |
| Machine Width | 8 ft 2 in. / 2.49 m |
| Maximum Ground Bearing Pressure | 76 psi / 5.32 Kg/cm2 |
| Platform Capacity - Unrestricted | 500 lb / 226.80 kg |
| Platform Dimension A | 3 ft / 0.91 m |
| Platform Dimension B | 8 ft / 2.44 m |
| Platform Height | 80 ft / 24.38 m |
| Swing Type | Continuous |
| Swing | 360 Degrees |
| Tailswing | 2 ft 6 in. / 0.76 m |
| Tire Size | 15-625 Pneumatic |
| Turning Radius - Outside (2WS) | 19 ft 8 in. / 5.99 m |
| Turning Radius - Outside (4WS) | 11 ft 7 in. / 3.53 m |
| Up and Over Height | 32 ft 1 in. / 9.78 m |
- Advanced Design Electronics System reduces your costs by increasing your fuel efficiency and reducing emissions
- Get the extra reach and versatility you need with the best reach envelope in the industry
- With Workstation in the Skyä accessories, you will have all you need to get the job done
