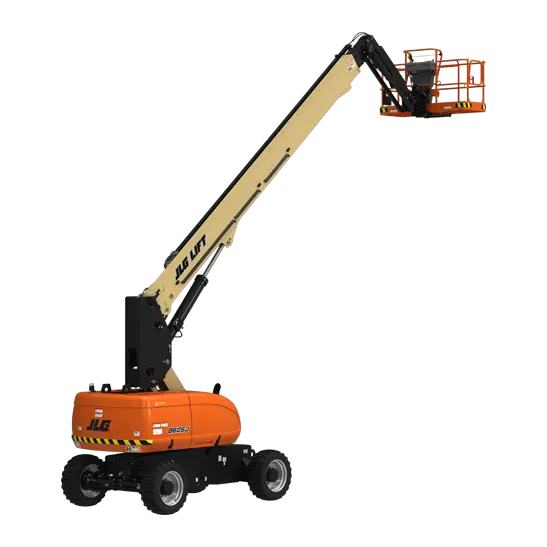

JLG 860SJ HC3
Aerial
Equipment Features
- 110V-AC Receptacle in the Platform
- ClearSky Smart Fleet™ Hardware (CS550)
- SkyGuard SkyLine™
| Auxiliary Power | 12 Volts DC |
|---|---|
| Capacity - Fuel Tank | 31 gal. / 117.35 L |
| Capacity - Hydraulic Reservoir | 48 gal. / 181.70 L |
| Drive Speed | 4.13 mph |
| Engine Type - Diesel | Deutz D2.9L4 Tier 4 Final 67 hp |
| Engine Type - Dual Fuel | Ford MSG425-DF 84hp |
| Gradeability - 2WD | 25 % |
| Gradeability - 4WD | 45 % |
| Jib Range of Articulation | 131 Degrees |
| Horizontal Outreach | 74 ft 8.9 in |
| Machine Weight | 38,040 lbs |
| Maximum Ground Bearing Pressure | 104.6 psi |
| Platform Capacity - Restricted | 750 lb / 340.19 kg |
| Platform Capacity - Unrestricted | 500 lb / 226.80 kg |
| Platform Height | 86 ft / 26.21 m |
| Swing | 360 Degrees Continuous |
| Turning Radius - Outside | 21 ft 7 in |
- USB-A and USB-C Charger
| Equipment Document | View Link |
|---|
Key Specs
- Platform Height: 86 ft / 26.21 m
- Platform Capacity – Restricted: 750 lb / 340.19 kg
- Platform Capacity – Unrestricted: 500 lb / 226.80 kg
- Horizontal Outreach: 74 ft 8.9 in
- Drive Speed: 3.5 mph
Key Features
- Utilizes three working zones for enhanced capacity; up to three workers and tools can fit onto the platform.
- Delivers a zero calibration automatic load sensing system that eliminates the need to use external weights to calibrate the machine.
- Upgraded light panel for more visibility in the sun and chassis tilt alarm that alerts the operator when the machine is on a slope that exceeds 4 Degrees.
- Available accessories and options provide the flexibility to upfit the machine to meet unique job requirements.
