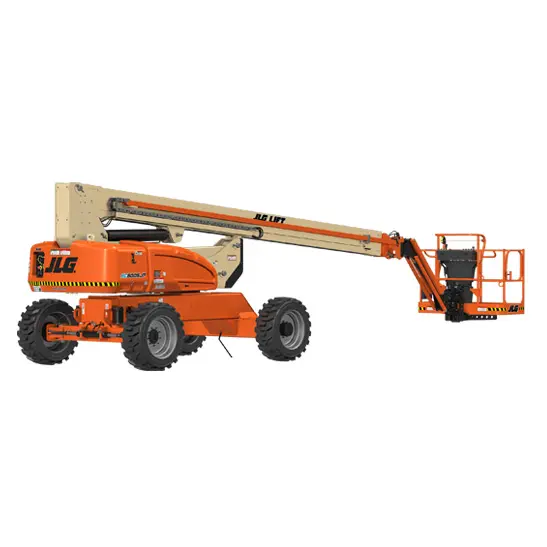

JLG EC600SJP
Aerial
Key Specs
- Platform Height: 60 ft 4 in
- Platform Capacity:Â 500 lbs
- Horizontal Outreach: 44 ft 5 in
- Drive Speed: 3.0 mph
Key Features
- Peak productivity with 60-ft 4-in platform height and 44-ft 5-in horizontal outreach.
- Produces zero emissions, emits reduced sound and utilizes nonmarking tires.
- Achieve maximum maneuverability by moving over uneven surfaces with Automatic Traction Control.
- Achieve optimum productivity with longer duty cycles.
| Electrical System | 48V DC |
|---|---|
| Batteries | 8 x 6V, 415 amp-hr |
| Capacity - Hydraulic Reservoir | 15 gal |
| Drive Speed | 3.0 mph |
| Gradeability - 4WD | 45% |
| Horizontal Outreach | 44 ft 5 in |
| Jib - Range of articulation - Vertical | 145 Degrees |
| Jib - Range of articulation - Horizontal | 180 Degrees |
| Machine Weight | 17,210 lbs |
| Maximum Ground Bearing Pressure | 51 psi |
| Platform Capacity | 500 lbs |
| Platform Height | 60 ft 4 in |
| Swing | 400 Degrees Non-Continuous |
- 4 Degree Tilt Cut-out
- 6-ft (1.83-m) Articulating Jib
- 110V-AC GFI Receptacle in the Platform
- ClearSky Smart Fleet™ Hardware (CS550)
- SkyGuard SkyLine™
| Equipment Document | View Link |
|---|
