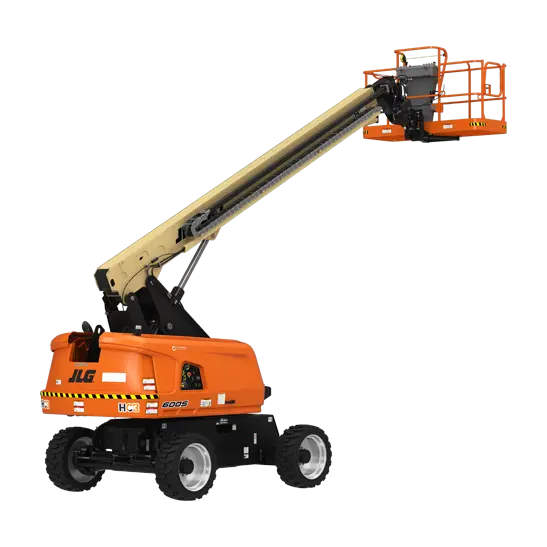

JLG 600S HC3
Aerial
Equipment Features
- 110V-AC Receptacle in the Platform
- ClearSky Smart Fleet™ Hardware (CS550)
- SkyGuard SkyLine™
| Auxiliary Power | 12 Volts DC |
|---|---|
| Capacity - Fuel Tank | 31 gal. / 117.35 L |
| Capacity - Hydraulic Reservoir | 34 gal. / 128.70 L |
| Drive Speed - 4WD | 3.8 mph |
| Engine Type - Diesel Fuel | Deutz D2.9L4 Tier 4 Final 48.8 hp |
| Engine Type - Dual Fuel | Ford MSG425-DF 84 hp |
| Gradeability - 4WD | 45% |
| Horizontal Outreach | 50 ft 2 in |
| Machine Weight | 22,900 lbs |
| Maximum Ground Bearing Pressure | 84 psi |
| Platform Capacity - Restricted | 750/1000 lbs |
| Platform Capacity - Unrestricted | 660 lbs |
| Platform Height | 59 ft 8 in |
| Swing | 360 Degrees Continuous |
- USB-A and USB-C Charger
| Equipment Document | View Link |
|---|
Key Specs
- Platform Height: 59 ft 8 in
- Platform Capacity – Restricted: 750/1,000 lbs
- Platform Capacity – Unrestricted: 660 lbs
- Horizontal Outreach: 50 ft 2 in
- Drive Speed: 3.8 mph
Key Features
- Utilizes three working zones for enhanced capacity; up to three workers and tools can fit onto the platform.
- Delivers a zero calibration automatic load sensing system that eliminates the need to use external weights to calibrate the machine.
- Upgraded light panel for more visibility in the sun and chassis tilt alarm that alerts the operator when the machine is on a slope that exceeds 5 Degrees.
- Available accessories and options provide the flexibility to upfit the machine to meet unique job requirements.
