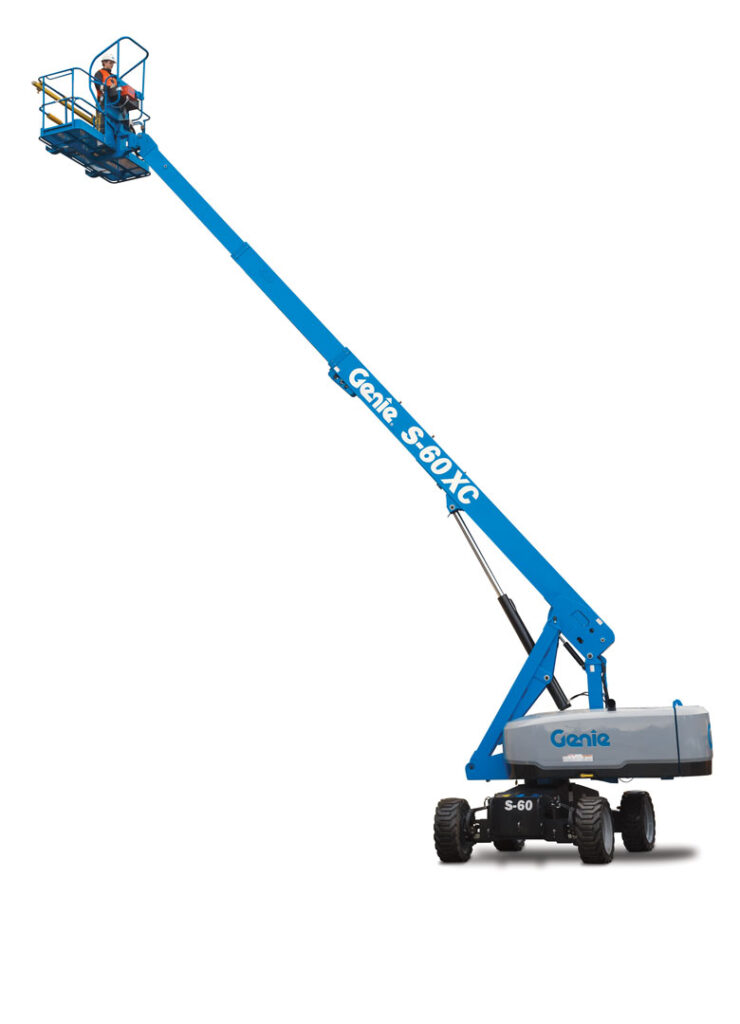

Genie S-60 XC and S-65 XC
Aerial
Equipment Specifications
| Below Ground Reach | 5 ft 7 in | 1.70 m |
|---|---|
| Machine Width and Length | 8 ft 2 in, 31 ft 11 in | 2.49 m, 9.73 m |
| Max Horizontal Reach | S-60 XC, 50 ft 10 in / S-65 XC, 54 ft 2 in | S-60 XC, 15.49 m / S-65 XC, 16.51 m |
| Max Platform Height | S-60 XC, 59 ft 8.5 in / S-65 XC, 65 ft 1 in | S-60 XC, 18.20 m / S-65 XC, 19.84 m |
| Platform Capacity | 660 lb Unrestricted, 1,000 lb Restricted | 300 kg Unrestricted, 454 kg Restricted |
| Below Ground Reach | 5 ft 7 in | 1.70 m |
|---|---|
| Machine Width and Length | 8 ft 2 in, 31 ft 11 in | 2.49 m, 9.73 m |
| Max Horizontal Reach | S-60 XC, 50 ft 10 in / S-65 XC, 54 ft 2 in | S-60 XC, 15.49 m / S-65 XC, 16.51 m |
| Max Platform Height | S-60 XC, 59 ft 8.5 in / S-65 XC, 65 ft 1 in | S-60 XC, 18.20 m / S-65 XC, 19.84 m |
| Platform Capacity | 660 lb Unrestricted, 1,000 lb Restricted | 300 kg Unrestricted, 454 kg Restricted |
Able to perform a wider range of heavier lift tasks on construction and industrial jobsites with Genie® S®-60 XC™ and S-65 XC telescopic booms — offering a dual lift capacity of 660-lb (300 kg) unrestricted and 1,000-lb (454 kg) restricted. The Genie Xtra Capacity™ (XC) feature lets up to three people work onboard with room for tools and jobsite materials.
Overview
- Maximum capacity with a robust jib design to handle increased loads
- Load sense technology for accurate load weighing and zero-load field calibration
- Chassis tilt sensor technology maximizes access to hard-to-reach work areas
- Onboard diagnostics maximizes serviceability
- Option to add the new Genie Lift Power™ generator system
Due to the delays in updating the ANSI A92 standards, Genie has temporarily suspended the production of the new Genie® S-60 XC™, S-65 XC and Z-45 XC booms*. Current Genie S-60, S-65 and Z-45 models will continue to be available for purchase until further notice.
* Please check back often for production updates on these units.
Chassis Options
- Tow package
Tire Options
- S-60 XC Trax or S-65 XC Trax: Quadra Track System
- Rough terrain, foam-filled tires (petroleum based)
- Rough terrain, non-marking, foam-filled tires (water based)
- Rough terrain, non-marking, foam-filled tires (petroleum based)
Engine Options
- 60 hp Ford MSG425, gas/LPG Dual Fuel (not available on S60/65 Trax)
- 74 hp Deutz Tier 4f TD2.9L4, turbo diesel (standard with Trax)
- Diesel intake air pre-cleaner
- LPS Fire protection rating: Ford engine only and requires LP only operation
- Cold weather kit: 5W-40 synthetic engine oil, oil pan heater, battery heater and hydraulic tank heater
- Ford engine gauge package: oil pressure, temperature and voltage
Lift/Turntable Options
- Specialty hydraulic oil (60 gal – cold weather, fire resistant, or biodegradable)
- LPG tank, 33.5 lb. capacity: Ford engine only
- Second battery
- Hostile environment kit: cylinder bellows, boom wiper seals, platform and ground control box covers
- Deluxe hostile environment kit: hostile environment kit, ring gear guard, cable track hose cover, air pre-cleaner
Platforms
- 4 ft. front-entry steel platform
- 6 ft. dual entry or 8 ft. tri entry platform with ½ height mesh inserts and side swing gate
- 6 ft. dual entry platform with side swing gate
Platform Options
- Lift Power™ 3kW AC generator, 110V/60Hz or 220V/50Hz
- Air line to platform: ½ in. inner diameter
- Aircraft protection kit: platform foam padding and padded disable system
- Aircraft protection kit: with swing gate
- Light package: 2 chassis mounted drive lights and 2 platform mounted work lights
- Lockable platform and ground control box covers
- Panel cradle package
- Platform auxiliary top rail
- Thumb rocker steering
- Lift Power™ 12kW Welder – Select Lincoln or Miller
- Lift Power™ 12kW Welder Ready package
- Traveling fall arrest anchor system: requires 6ft platform
- Traveling fall arrest anchor system: requires 8ft platform
