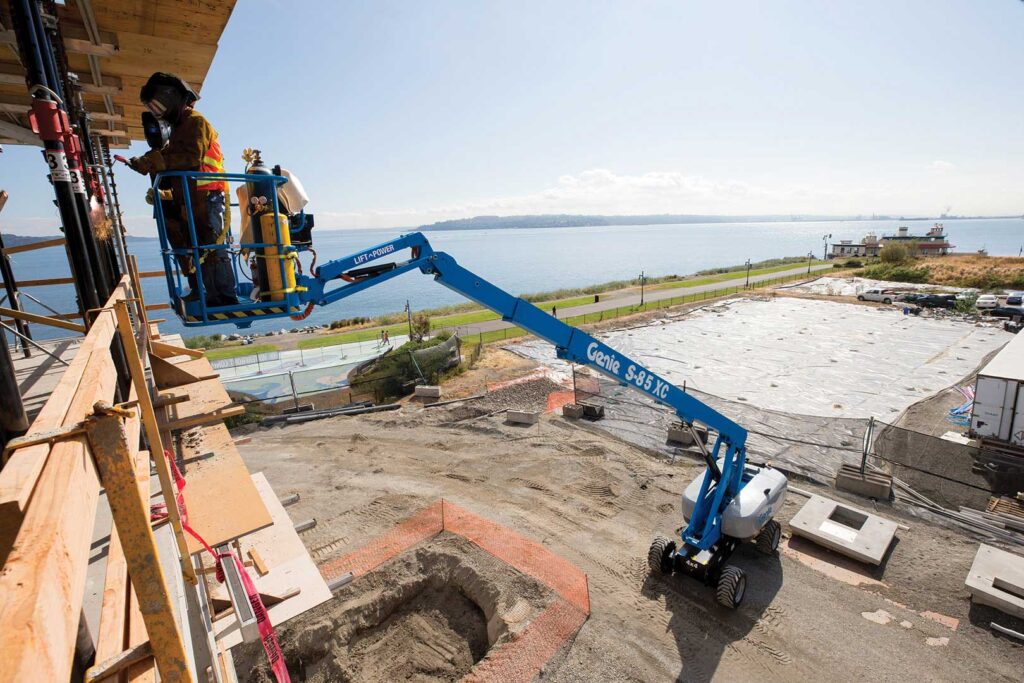

Genie® S®-80 XC™ and S®-85 XC telescopic booms offer a dual lift capacity of 660-lb (300 kg) unrestricted and 1,000-lb (454 kg) restricted to perform a wider range of heavier lift tasks on construction and industrial jobsites. And, the Genie Xtra Capacity™ (XC) feature lets up to three people work onboard while still leaving room for tools and jobsite materials.

Overview

  • Maximum capacity with a robust jib design to handle increased loads
  • Load sense technology for accurate load weighing and zero-load field calibration
  • Chassis tilt sensor technology  maximizes access to hard-to-reach work areas
  • Onboard diagnostics maximizes serviceability
  • Option to add the new Genie Lift Power™ generator system



  • + Expand All
  • - Close All
  • Options

    Chassis Options

    • Tow package

    Tire Options

    • Rough terrain, foam-filled tires  (petroleum based)
    • Rough terrain, non-marking, foam-filled tires (water based)
    • Rough terrain, non-marking, foam-filled tires  (petroleum based)

    Engine Options

    • 70 hp GM Vortec 3.0L Gas/LPG Dual Fuel
    • Diesel air intake pre-cleaner
    • Cold weather recirc kit: 5W-40 synthetic engine oil, oil pan heater, battery heater, platform manifold recirculation and hydraulic tank heater

    Lift/Turntable Options

    • Specialty hydraulic oil  (60 gal - cold weather, fire resistant, or biodegradable)
    • LPG tank, 33.5 lb. capacity: duel fuel engine only
    • Hostile environment kit: cylinder bellows, boom wiper seals, platform and ground control box covers
    • Deluxe hostile environment kit: hostile environment kit, ring gear guard, cable track cable/hose cover, air pre-cleaner

    Platforms

    • 6 ft. dual entry or 8 ft. tri entry platform with ½ height mesh inserts and side swing gate
    • 6 ft. dual entry platform with side swing gate

    Platform Options

    • Lift Power™ 3kW AC generator, 110V/60Hz or 220V/50Hz
    • Air line to platform: ½ in. inner diameter
    • Light package: 2 chassis mounted drive lights and 2 platform mounted work lights
    • Lockable platform and ground control box covers
    • Panel cradle package
    • Platform auxiliary top rail
    • Thumb rocker steering
    • Lift Power™ 12kW Welder - Select Lincoln or Miller
    • Lift Power™ 12kW Welder Ready package
    • Traveling fall arrest anchor system: requires 6ft platform
    • Traveling fall arrest anchor system: requires 8ft platform
  • Max Platform Height: S-80 XC: 80 ft / S-85 XC: 85 ft | S-80 XC: 24.38 m / S-85 XC: 25.91 m
  • Below Ground Reach: S-80 XC: 5 ft 6 in / S-85 XC: 8 ft 10 in | S-80 XC: 1.68m / S-85 XC: 2.69 m
  • Machine Width and Length: S-80 XC: 8ft 2 in, 37 ft 1 in / S-85 XC: 8 ft 2 in, 40 ft 7 in | S-80 XC: 2.49 m, 11.3 m / S-85 XC: 2.49 m, 12.37 m
  • Max Horizontal Reach: S-80 XC: 68 ft 4 in / S-85 XC: 74 ft 6 in | S-80 XC: 20.83 m / S-85 XC: 22.71 m
  • Platform Capacity: 660 lb Unrestricted, 1000 lb Restricted | 300 kg Unrestricted, 454 kg Restricted
