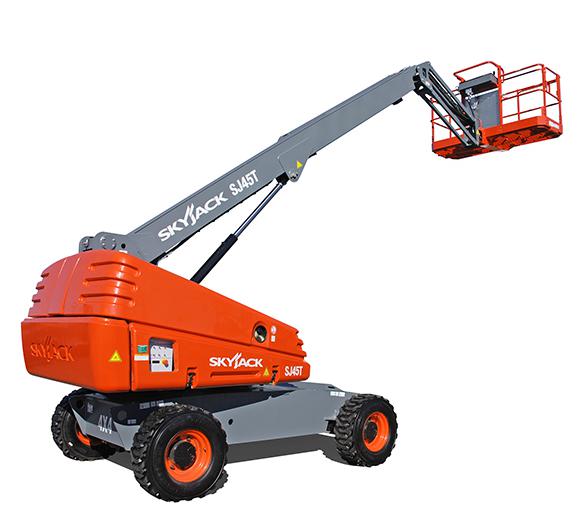

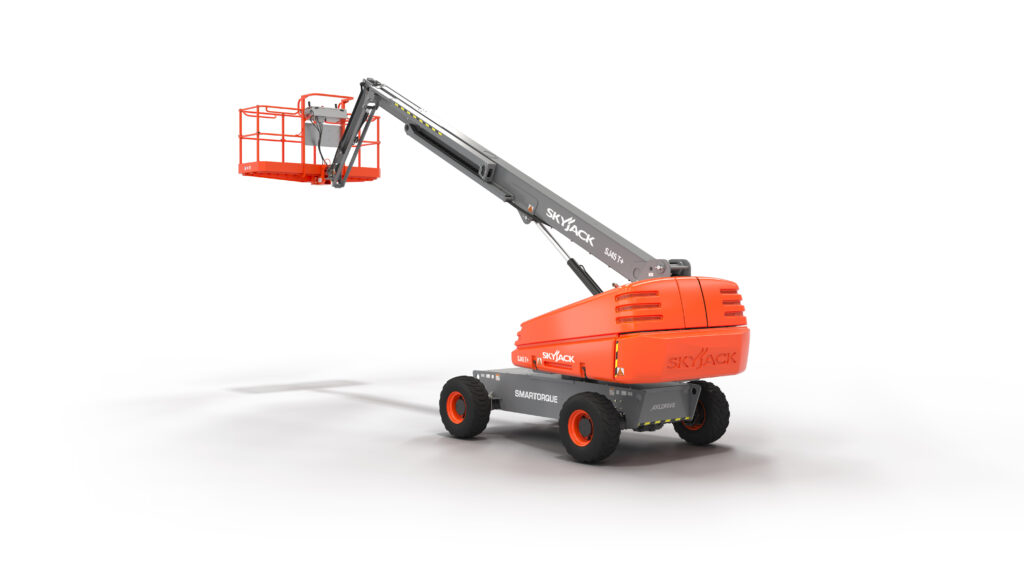

Skyjack SJ40/45 T
Aerial
Equipment Features
- “Detroit Locker” type rear differential and limited slip
- 110V AC outlet on platform with GFI
- 12 x 16.5 grip lug air-filled tires
- 360° continuous turret rotation
- 50% Gradeability
- All motion alarm
- Axle based 4WD system
- Color coded and numbered wiring
- Diesel or dual fuel engine
- Direction sensing drive and steer controls
- Drivable at full height
- front differential
- Hourmeter
- Modular platform railing system
- Operator horn
- Oscillating axle
- Proportional controls
- Relay based control system
- Swing out engine tray
- Swing up cowlings
- Telematics ready
- Tie down/lifting lugs
- Tri-entry sliding mid rails
- Wet disc SAHR brakes (rear axle)
SJ40 T
SJ45 T
Work Height
46’7” (14.20 m)
51’2” (15.60 m)
Platform Height
40’7” (12.37 m)
45’2” (13.77 m)
Horizontal Reach
34’ (10.36 m)
39’9” (12.12 m)
Platform Size
36” x 96” (0.91 x 2.44 m)
36” x 96” (0.91 x 2.44 m)
Stowed Width
90” (2.29 m)
90” (2.29 m)
Tailswing
37” (0.94 m)
37” (0.94 m)
Stowed Height
94” (2.39 m)
94” (2.39 m)
Stowed Length
25’5” (7.74 m)
28’10” (8.79 m)
Ground Clearance
11” (0.28 m)
11” (0.28 m)
Wheelbase
96” (2.44 m)
96” (2.44 m)
Rotation
360° Continuous
360° Continuous
Platform Rotation
170°
170°
Jib Length
–
5’ (1.5 m)
Jib Range +/-
–
+65° / -60°
Weight
13,960 lbs (6,332 kg)
14,830 lbs (6,727 kg)
Gradeability
50%
50%
Turning Radius (Inside)
84” (2.13 m)
84” (2.13 m)
Turning Radius (Outside)
198” (5.03 m)
198” (5.03 m)
Axle Oscillation
5” (12.70 cm)
Drive Speed (High speed)
4.5 mph (7.2 km/h)
4.5 mph (7.2 km/h)
Capacity
650 lbs (295 kg)
500 lbs (227 kg)
Local Floor Load (With Rated Load)
130 psi (896 kPa)
135 psi (931 kPa)
Overall Floor Load (With Rated Load)
193 psf (9.24 kPa)
200 psf (9.58 kPa)
Maximum # of Persons
2
2
Tire Type
Air Filled
Air Filled
Tire Size
12 x 16.5
12 x 16.5
Diesel Engine
48 HP
48 HP
Dual Fuel Engine
82 HP
82 HP
Fuel Tank
45 gallon (170 L)
45 gallon (170 L)
Hydraulic Reservoir
59 gallon (223 L)
59 gallon (223 L)
