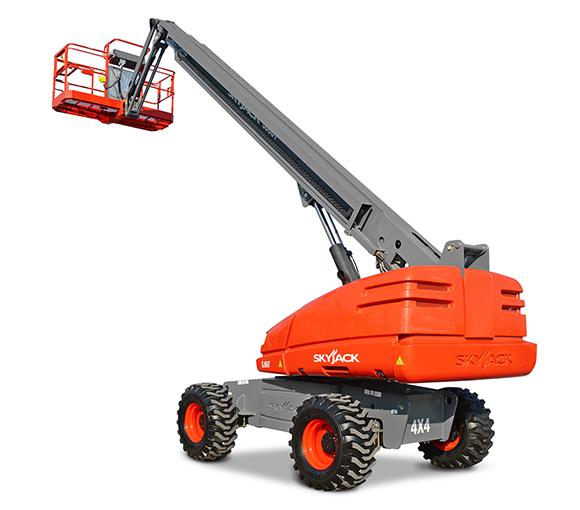

Skyjack SJ61/66 T
Aerial
Equipment Features
- 110V AC outlet on platform with GFI
- 18 x 625 grip lug foam filled tires
- 360° continuous turret rotation
- 45% Gradeability
- All motion alarm
- Axle based 4WD system
- Color coded and numbered wiring
- Diesel engine
- Direction sensing drive and steer controls
- Drivable at full height
- Dual capacity rating
- Hourmeter
- Modular platform railing system
- Operator controlled locking rear differential and limited slip front differential
- Operator horn
- Oscillating axle
- Proportional controls
- Relay based control system
- Swing out engine tray
- Swing up cowlings
- Telematics ready
- Tie down points
- Tri-entry sliding mid rails
- Wet disc SAHR brakes (front and rear axle)
SJ61 T
SJ66 T
Work Height
67’3” (20.50 m)
72’ (21.95 m)
Platform Height
61’3” (18.67 m)
66’ (20.12 m)
Horizontal Reach
51’3” (15.62 m)
57’ (17.37 m)
Platform Size
36” x 96” (0.91 x 2.44 m)
36” x 96” (0.91 x 2.44 m)
Stowed Width
96” (2.44 m)
96” (2.44 m)
Tailswing
47” (1.19 m)
47” (1.19 m)
Stowed Height
101” (2.57 m)
101” (2.57 m)
Stowed Length
30’4” (9.25 m)
33’11” (10.34 m)
Ground Clearance
16” (0.41 m)
16” (0.41 m)
Wheelbase
96” (2.44 m)
96” (2.44 m)
Rotation
360° Continuous
360° Continuous
Platform Rotation
170°
170°
Jib Length
–
5’ (1.5 m)
Jib Range +/-
–
+65° / -60°
Weight
23,400 lbs (10,614 kg)
26,700 lbs (12,111 kg)
Gradeability
50%
50%
Turning Radius (Inside)
111” (2.8 m)
111” (2.8 m)
Turning Radius (Outside)
199” (5.05 m)
199” (5.05 m)
Axle Oscillation
3” (7.62 cm)
3” (7.62 cm)
Drive Speed (High speed)
4.5 mph (7.2 km/h)
4.5 mph (7.2 km/h)
Capacity
500 lbs (227 kg)
500 lbs (227 kg)
Local Floor Load (With Rated Load)
138 psi (951 kPa)
145 psi (1,000 kPa)
Overall Floor Load (With Rated Load)
266 psf (13 kPa)
304 psf (15 kPa)
Maximum # of Persons
2
2
Tire Type
Air Filled
Air Filled
Tire Size
15 x 19.5
15 x 19.5
Diesel Engine
74 HP
74 HP
Dual Fuel Engine
82 HP
82 HP
Fuel Tank
45 gallon (170 L)
45 gallon (170 L)
Hydraulic Reservoir
60 gallon (227 L)
60 gallon (227 L)
