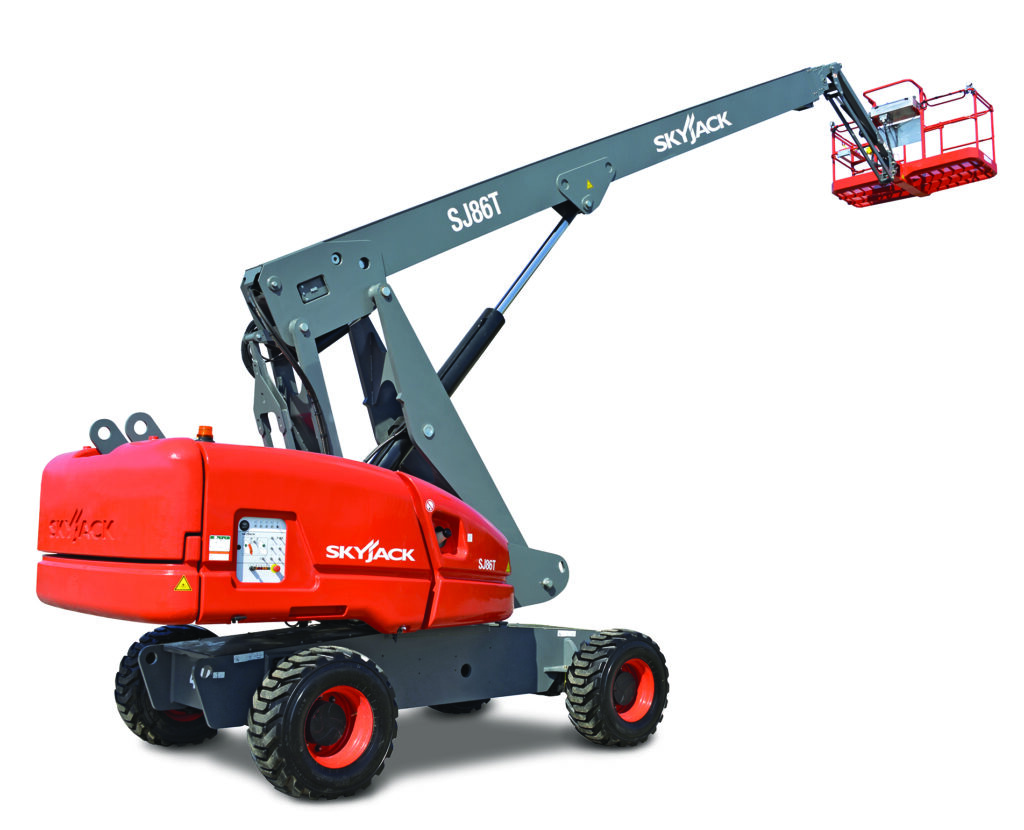

Skyjack SJ82/86 T
Aerial
Equipment Features
- 110V AC outlet on platform with GFI
- 18 x 625 grip lug foam filled tires
- 360° continuous turret rotation
- 45% Gradeability
- All motion alarm
- Axle based 4WD system
- Color coded and numbered wiring
- Diesel engine
- Direction sensing drive and steer controls
- Drivable at full height
- Dual capacity rating
- Hourmeter
- Modular platform railing system
- Operator controlled locking rear differential and limited slip front differential
- Operator horn
- Oscillating axle
- Proportional controls
- Relay based control system
- Swing out engine tray
- Swing up cowlings
- Telematics ready
- Tie down points
- Tri-entry sliding mid rails
- Wet disc SAHR brakes (front and rear axle)
SJ82 T
SJ86 T
Work Height
88’ (26.82 m)
92’ (28.04 m)
Platform Height
82’ (24.99 m)
86’ (26.21 m)
Horizontal Reach
72’6” (22.10 m)
76’10” (23.42 m)
Platform Size
36” x 96” (0.91 x 2.44 m)
36” x 96” (0.91 x 2.44 m)
Stowed Width
98” (2.49 m)
98” (2.49 m)
Tailswing
56” (1.42 m)
56” (1.42 m)
Stowed Height
118” (3.00 m)
118” (3.00 m)
Stowed Length
37’10” (11.53 m)
42’6” (12.95 m)
Ground Clearance
16” (0.41 m)
16” (0.41 m)
Wheelbase
132” (3.35 m)
132” (3.35 m)
Rotation
360° Continuous
360° Continuous
Platform Rotation
170°
170°
Jib Length
–
5’6” (1.68 m)
Jib Range +/-
–
+65° / -60°
Weight
37,150 lb (16,851 kg)
37,800 lbs (17,146 kg)
Gradeability
45%
45%
Turning Radius (Inside)
160” (4.06 m)
160” (4.06 m)
Turning Radius (Outside)
280” (7.11 m)
280” (7.11 m)
Axle Oscillation
4” (10.16 m)
4” (10.16 m)
Drive Speed (High speed)
3 mph (4.8 km/h)
3 mph (4.8 km/h)
Capacity
500 lbs (227 kg) / 1000 lbs / (454 kg)
500 lbs (227 kg) / 750 lbs / (341 kg)
Maximum # of Persons
2/3
2/3
Tire Type
Foam Filled
Foam Filled
Tire Size
18-625
18-625
Diesel Engine
74 HP
74 HP
Fuel Tank
45 gallon (170 L)
45 gallon (170 L)
Hydraulic Reservoir
60 gallon (227 L)
60 gallon (227 L)
