Genie SX-150
Aerial
Equipment Specifications
| Below Ground Reach | 2 ft | 0.61 m |
|---|---|
| Machine Width and Length | 12 ft 11 in / 46 ft 9 in | 3.94 m / 14.24 m |
| Max Horizontal Reach | 80 ft | 24.38 m |
| Max Platform Height | 152 ft | 48.33 m |
| Platform Capacity | 750 lb | 340 kg |
| Below Ground Reach | 2 ft | 0.61 m |
|---|---|
| Machine Width and Length | 12 ft 11 in / 46 ft 9 in | 3.94 m / 14.24 m |
| Max Horizontal Reach | 80 ft | 24.38 m |
| Max Platform Height | 152 ft | 48.33 m |
| Platform Capacity | 750 lb | 340 kg |

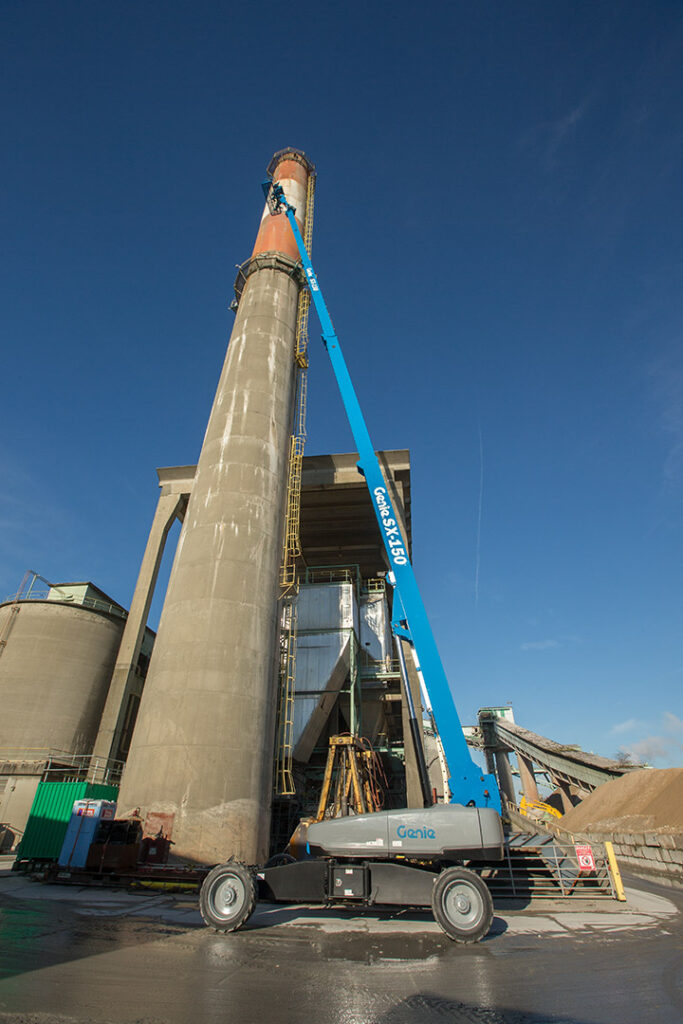

The Genie® SX™-150 telescopic boom offers uncompromising productivity and industry-leading capacity through the full working envelope. This Genie boom is designed to perform in even the most extreme construction, maintenance, telecommunications, gas and oil, chemical maintenance, and large utility applications.
Overview
- Easily position workers and gear with a 10-ft (3.05 m) rotating jib
- Designed to be productive, reliable and easy to transport
- Features a working envelope ideal for the most extreme access jobs with a vertical reach of 152 ft (46.33 m) and a horizontal reach of 80 ft (24.4 m)
- Genie XChassis™ extends and retracts to provide stability on the job and a narrow profile for transport
Engine Options
- Diesel intake air pre-cleaner
- Cold weather recirc kit: 5W-40 Synthetic engine oil, oil pan heater, battery heater, platform manifold recirculation, and hydraulic tank heater
Lift/Turntable Options
- Hostile environment kit: cylinder bellows, boom wiper seals, platform control box cover, second engine oil filter
- Specialty hydraulic oil (225 gal – cold weather, fire resistant, or biodegradable)
Platforms
- 8 ft. tri entry platform with ½ height mesh inserts and side swing gate
Platform Options
- Air line to platform
- Light package: 2 platform mounted work lights
- Lockable platform control box cover
- Thumb rocker steering
- Welder – Select Lincoln or Miller
- Anemometer
- Traveling fall arrest anchor system: requires 8ft platform
Generator Options
- AC Generator, 12kW, 208V/110V/60Hz
