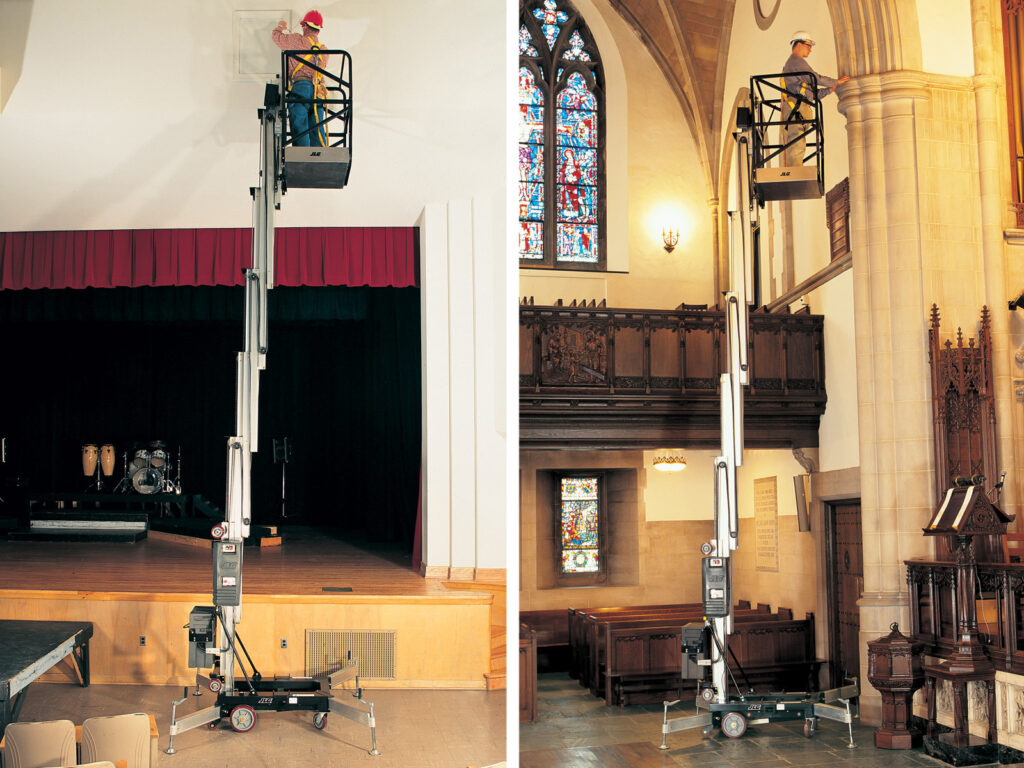

JLG 25AM
Aerial
Key Specs
- Platform Height: 25 ft 2 in. / 7.67 m
- Machine Width: 2 ft 5 in. / 0.74 m
Key Features
- Most rigid mast in the industry for operator comfort and stability
- Six-wheel design for improved maneuverability
- Long battery duty cycles and an automatic charger for more productivity
| Ground Entry Height | 1 ft 7 in. / 0.48 m |
|---|---|
| Machine Height | 6 ft 6 in. / 1.97 m |
| Machine Length | 4 ft 1 in. / 1.24 m |
| Machine Weight-AC | 825 lb / 374.21 kg |
| Machine Weight-DC | 905 lb / 410.50 kg |
| Machine Width | 2 ft 5 in. / 0.74 m |
| Outrigger Footprint Length | 5 ft 2 in. / 1.57 m |
| Outrigger Footprint Width | 4 ft 5 in. / 1.35 m |
| Outriggers or Stabilizers | Yes |
| Outriggers Up Max Lift Height | 25.1 ft / 7.65 m |
| Platform Capacity | 350 lb / 158.76 kg |
| Platform Dimension A | 2 ft 2 in. / 0.66 m |
| Platform Dimension B | 2 ft 2 in. / 0.65 m |
| Platform Height | 25 ft 2 in. / 7.67 m |
| Wheel Size - Front Caster | 6 x 2" |
| Wheel Size - Rear | 10 x 2" |
| Working Height | 31 ft / 9.45 m |
- Long battery duty cycles and an automatic charger for more productivity
- Most rigid mast in the industry for operator comfort and stability
- Six-wheel design for improved maneuverability
