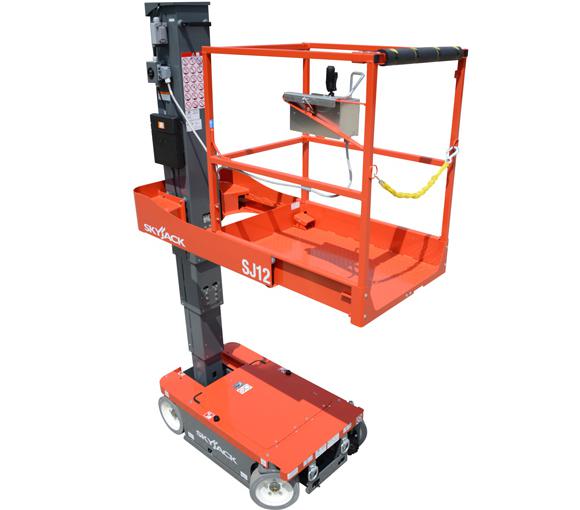

Skyjack SJ12/16
Aerial
Equipment Features
- 110V AC outlet at platform with GFI
- 20” (0.51 m) Traversing platform
- 24V DC power source
- 28 mph wind rating (12.5 m/s)
- 30% Gradeability
- All motion audible alarm
- Chain entrance
- Color coded and numbered wiring system
- Drivable at full height
- Dual holding brakes
- Lanyard attachment points
- Lift rings/tie downs
- Low voltage battery protection
- Operator horn
- Pothole protection system
- Proportional controls
- Relay based control system
- Solid rubber, non-marking tires
- Telematics ready
- Tilt alarm with drive & lift cut-out
- Variable speed, front two wheel hydraulic drive
- Zero inside turning radius
SJ12
SJ16
Work Height
18’ (5.48 m)
21’7” (6.58 m)
Raised Platform Height
12’ (3.65 m)
15’7” (4.75 m)
Lowered Platform Height
18” (0.45 m)
18” (0.45 m)
Overall Width
30.5” (0.77 m)
30.5” (0.77 m)
Overall Length
54” (1.37 m)
54” (1.37 m)
Stowed Height
70.3” (1.79 m)
70.3” (1.79 m)
Platform Width (Inside Dimension)
27” (0.69 m)
27” (0.69 m)
Platform Length (Inside Dimension)
36.8” (0.93 m)
36.8” (0.93 m)
Ground Clearance (Stowed)
2.1” (5.33 cm)
2.1” (5.33 cm)
Ground Clearance (raised)
0.63” (1.60 cm)
0.63” (1.60 cm)
Weight
1,720 lbs (782 kg)
2,130 lbs (966 kg)
Gradeability
30%
30%
Turning Radius (Inside)
0
0
Turning Radius (Outside)
55” (1.40 m)
55” (1.40 m)
Lift Time (With Rated Load)
16 sec
20 sec
Drive Speed (Stowed)
2.5 mph (4.0 km/h)
2.5 mph (4.0 km/h)
Drive Speed (Raised)
0.5 mph (0.80 km/h)
0.5 mph (0.80 km/h)
Drive Speed (High speed)
2.5 mph (4.0 km/h)
2.5 mph (4.0 km/h)
Maximum Drive Height
Full Height
Full Height
Capacity
500 lbs (227 kg)
500 lbs (227 kg)
Maximum # of Persons
2
2
Tire Type
Solid, N/M
Solid, N/M
Tire Size
12 x 4 x 8
12 x 4 x 8
