Genie TZ-34/20
Aerial

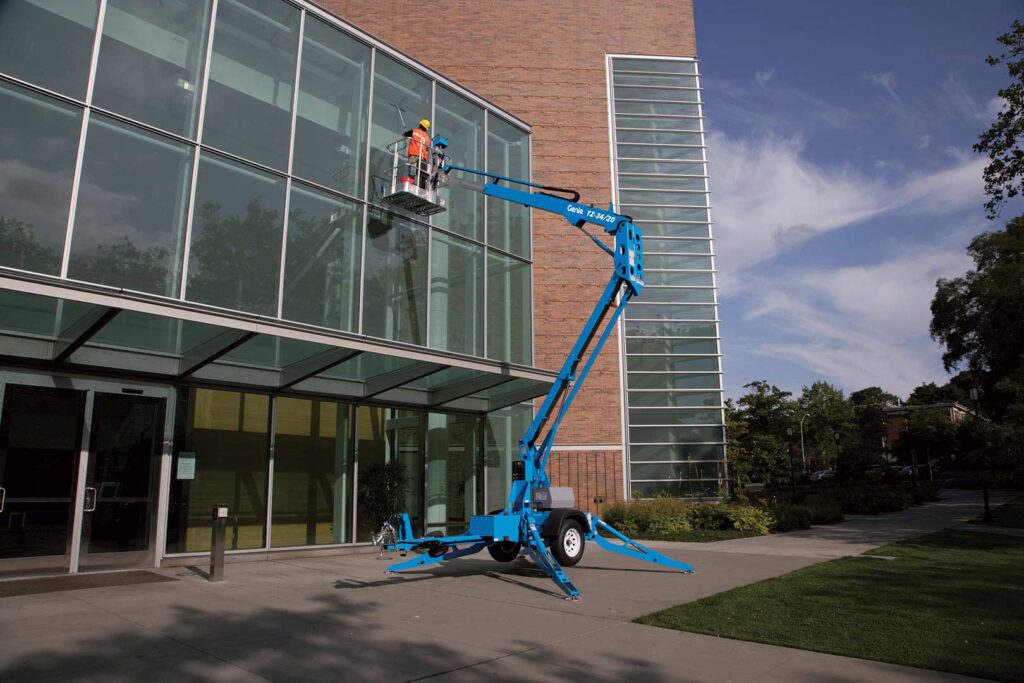

The Genie® TZ™-34/20 trailer-mounted boom has an outstanding working envelope and intuitive controls, allowing operators to efficiently reach where they need to be.
Overview
- Rugged and heavy-duty, yet lightweight enough to use on lawns, slate and gymnasium floors, as well as other sensitive surfaces.
- Extension boom with self-leveling platform and dual pneumatic jockey wheels for safe, precise setup
- Variable-speed control system
- 359˚ non-continuous turntable rotation for versatile positioning
Horizontal Reach | 18 ft 4 in | 5.59 m |
---|---|
Max Platform Height | 34 ft | 10.36 m |
Platform Capacity | 500 lbs | 227 kg |
Up and Over Clearance | 16 ft 1 in | 4.90 m |
Weight | 3,155 lb | 1,431 kg |
- Non-marking outrigger foot pads
- Spare tire
- Wheel chocks
- 2 inch ball coupler (lever lock or Bulldog™)
- 2 5/16 inch ball coupler (lever lock or Bulldog™)
- 2 1/2 inch (6.53 cm) I.D. pintle ring coupler
- Clevis coupler
- Battery charge indicator (BCI)
- Flashing beacon
- Horn
- 90 degree manual platform rotation
- Fluorescent tube caddy
- Tool tray
- Dual 10 inch air filled tires
